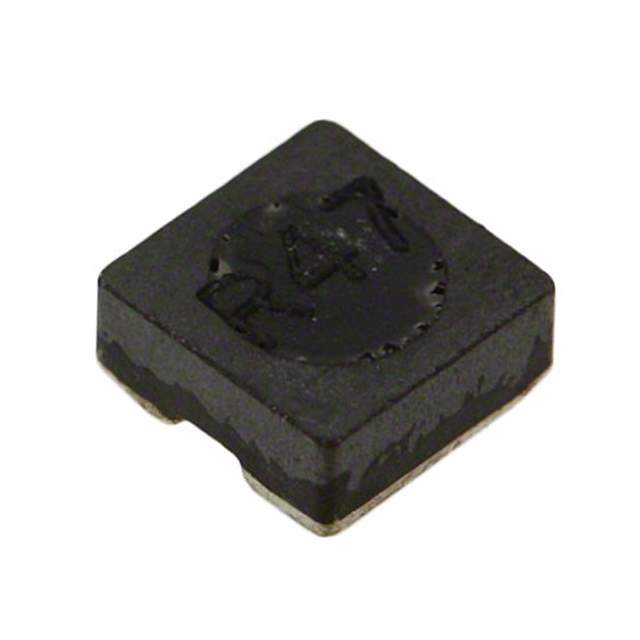

744031220 Real Image
Same model may have multiple batches, images only for reference.

744031220

Part No 744031220
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 22UH 510MA 450MOHM SMD
Datasheet
744031220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±30%
Current Rating (Amps) 510 mA
Current - Saturation (Isat) 360mA
Shielding Shielded
DC Resistance (DCR) 450mOhm Max
Frequency - Self Resonant 26MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 3816
Size / Dimension 0.150" L x 0.150" W (3.80mm x 3.80mm)
Height - Seated (Max) 0.071" (1.80mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 743948-744031220
Ultra Librarian 3D Model Ultra Librarian 744031220 CAD Model

Description

The WE-TPC series from Wurth Electronics Inc is a drum core, wirewound inductor designed for use in various electronic applications.

  • Size: 0.150" L x 0.150" W (3.80mm x 3.80mm)
  • Inductance: 22 µH ±30%
  • Design: Shielded
  • Package: Tape & Reel
  • Maximum Seated Height: 0.071" (1.80mm)
  • DC Resistance (DCR): 450mOhm max
  • Temperature Range: -40°C to 125°C
  • Current Rating: 510 mA
