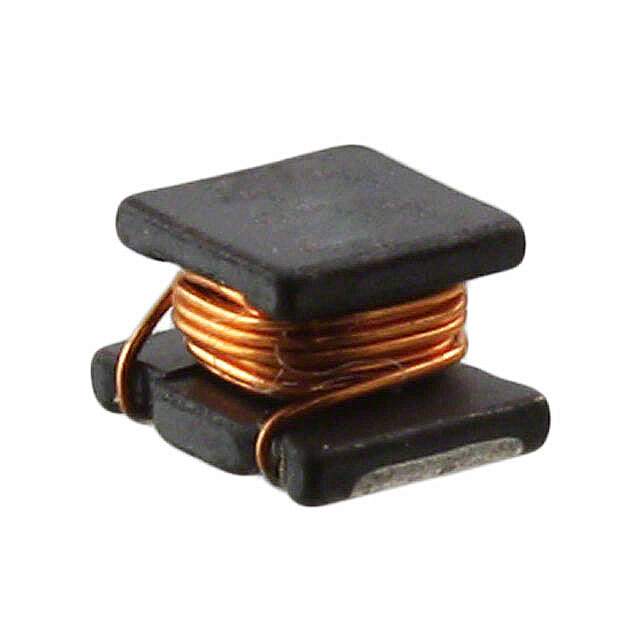

Same model may have multiple batches, images only for reference.

744032121

Get a Quote

Part No	744032121
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 120UH 95MA 7 OHM SMD / 120 µH Unshielded Drum Core, Wirewound Inductor 95 mA 7Ohm Max 1210 (3225 Metric)
Datasheet	744032121 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	120 µH
Tolerance	±10%
Current Rating (Amps)	95 mA
Current - Saturation (Isat)	180mA
Shielding	Unshielded
DC Resistance (DCR)	7Ohm Max
Q @ Freq	40 @ 796kHz
Frequency - Self Resonant	7MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	Surface Mount
Case / Package	1210 (3225 Metric)
Supplier Device Package	1210
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	0.091" (2.30mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-3055-2,732-3055-1,732-3055-6
Standard Package	2,000
Win Source Part Number	1327652-744032121
Ultra Librarian 3D Model	Ultra Librarian 744032121 CAD Model

Alternative Products

Description

The 744032121 from Würth Elektronik is a surface mount fixed inductor with a 120 µH inductance and a ±10% tolerance.

Inductance: 120 µH
Tolerance: ±10%
Core Type: Drum Core, Wirewound
Shielding: Unshielded
Core Material: Ferrite
Package: 1210 (3225 metric)
DC Resistance: 7 ohms max
Current Rating: 95 mA
Popularity: High
Compliance: ROHS3
