Same model may have multiple batches, images only for reference.

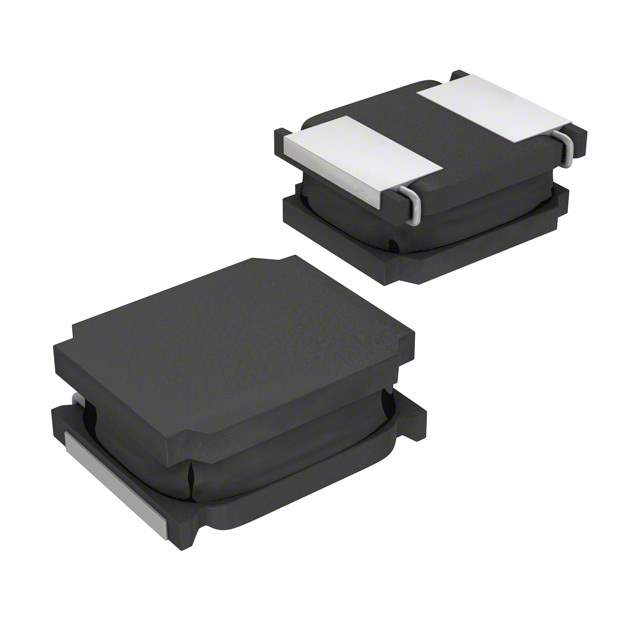

74404024033 Real Image
Same model may have multiple batches, images only for reference.

74404024033

Part No 74404024033
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1.4A 120MOHM SMD / 3.3 µH Semi-Shielded Drum Core, Wirewound Inductor 1.4 A 120mOhm Nonstandard
Datasheet
74404024033 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 1.4 A
Current - Saturation (Isat) 1.25A
Shielding Semi-Shielded
DC Resistance (DCR) 120mOhm
Frequency - Self Resonant 66MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 2520
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-5426-6,732-5426-2,732-5426-1
Standard Package 2,000
Win Source Part Number 1327769-74404024033
Ultra Librarian 3D Model Ultra Librarian 74404024033 CAD Model

Description

The Würth Elektronik 2520 series is a semi-shielded drum core wirewound inductor with an inductance of 3.3 µH and a DC resistance of 120mOhm.

  • Application: Automotive
  • AEC-Q200 Rated: Yes
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Supplied In: Reel of 2000 pieces
  • Current Rating: 1.4A
  • Core Material: Ferrite
  • Frequency Range: 66MHz
