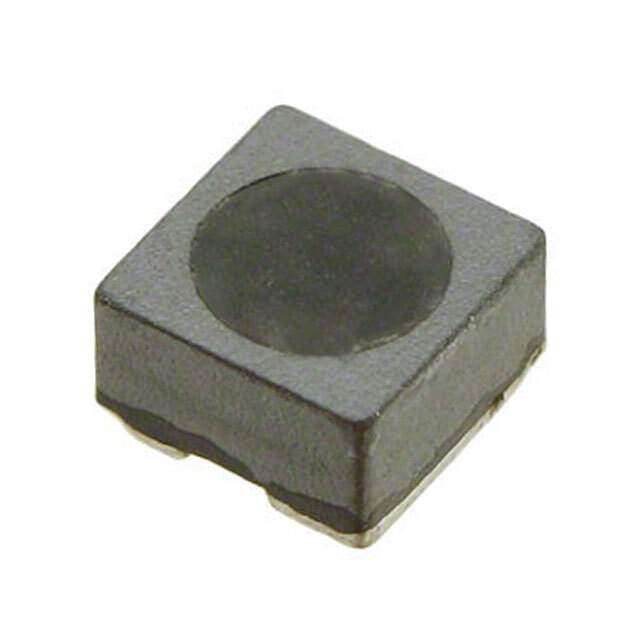

Same model may have multiple batches, images only for reference.

744043151

Name: 744043151
Brand: Wurth Electronics Inc
SKU: 857242
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	744043151
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 150UH 420MA 860MOHM SM
Datasheet	744043151 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	150 µH
Tolerance	±30%
Current Rating (Amps)	420 mA
Current - Saturation (Isat)	220mA
Shielding	Shielded
DC Resistance (DCR)	860mOhm Max
Frequency - Self Resonant	7MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	1919 (4848 Metric)
Size / Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857242-744043151
Ultra Librarian 3D Model	Ultra Librarian 744043151 CAD Model

Alternative Products

Description

The WE-TPC series is a line of fixed inductors designed for use in electronic components.

Core Type: Drum core
Construction: Wirewound
Package: Tape and reel
Shielding: Shielded
Size: 0.189" L x 0.189" W (4.80mm x 4.80mm)
Maximum Seated Height: 0.118" (3.00mm)
Inductance: 150 µH
Tolerance: ±30%
DC Resistance: 860mOhm max
Current Rating: 420mA
Operating Temperature Range: -40°C to 125°C
Core Material: Ferrite
Mounting: Surface mount
Standard Package: 500 pcs
