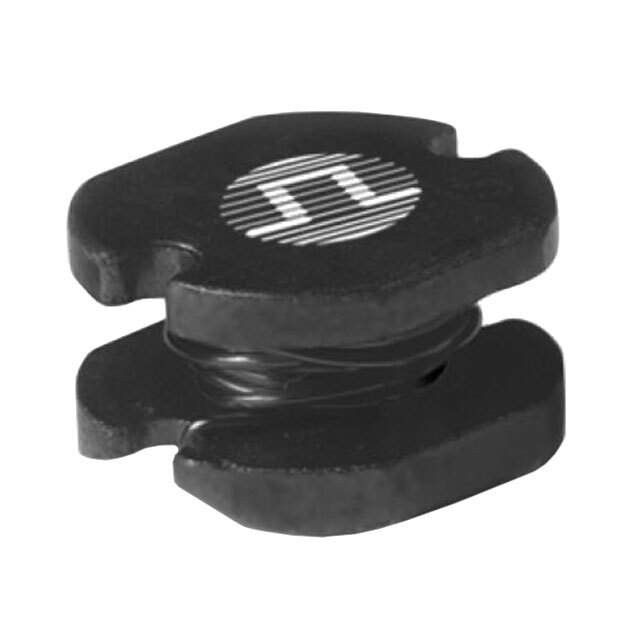

Same model may have multiple batches, images only for reference.

PG0015.473NLT

Name: PG0015.473NLT
Brand: Pulse
SKU: 273501
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PG0015.473NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 47UH 1.28A 170 MOHM
Datasheet	PG0015.473NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Pulse Electronics Corporation
Packaging	Reel - TR
Status	Active
Type	Wirewound
Inductance	47μH
Tolerance	±20%
Current Rating	1.28A
Current - Saturation	1.28A
DC Resistance (DCR)	170 mOhm Max
Frequency - Self Resonant	9MHz
Temperature Range - Operating	-40°C to 125°C
Mounting	SMD (SMT)
Height - Seated (Max)	0.219" (5.55mm)
Win Source Part Number	045740-PG0015.473NLT
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PG0015.473NLT CAD Model

Alternative Products

Description

The Pulse Electronics Corporation wirewound inductor is a highly reliable electronic component that is designed to provide excellent performance and durability.

Inductance: 47μH
Current Rating: 1.28A
Height: 0.219" (5.55mm)
Mounting: SMD (SMT)
Tolerance: ±20%
DC Resistance (DCR): 170 mOhm Max
Packaging: reel - TR
