Same model may have multiple batches, images only for reference.

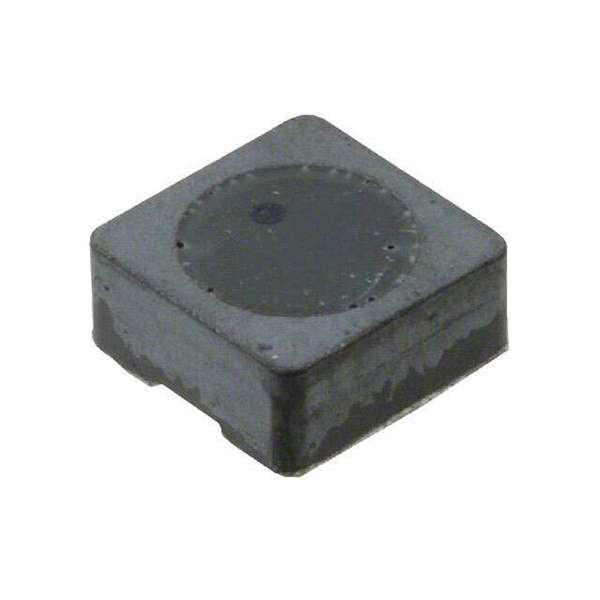

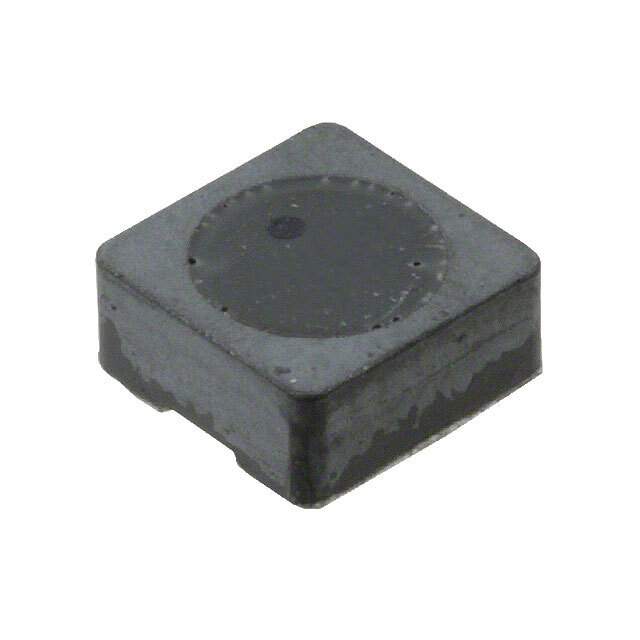

7440530047 Real Image
Same model may have multiple batches, images only for reference.

7440530047

Part No 7440530047
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.4A 38 MOHM SMD
Datasheet
7440530047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±30%
Current Rating (Amps) 2.4 A
Current - Saturation (Isat) 1.95A
Shielding Shielded
DC Resistance (DCR) 38mOhm Max
Frequency - Self Resonant 40MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2323 (5858 Metric)
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857249-7440530047
Ultra Librarian 3D Model Ultra Librarian 7440530047 CAD Model

Description

The 857249-7440530047 is a fixed inductor from the WE-TPC series by Wurth Electronics Inc.

  • Core Type: Drum core, wirewound
  • Shielding: Shielded
  • Package: Tape and reel
  • Mounting: Surface mount
  • Size: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Inductance: 4.7 μH
  • Maximum Seated Height: 0.118" (3.00mm)
  • Tolerance: ±30%
  • DC Resistance (DCR): 38mOhm maximum
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 2.4 A
  • Self-Resonant Frequency: 40MHz
