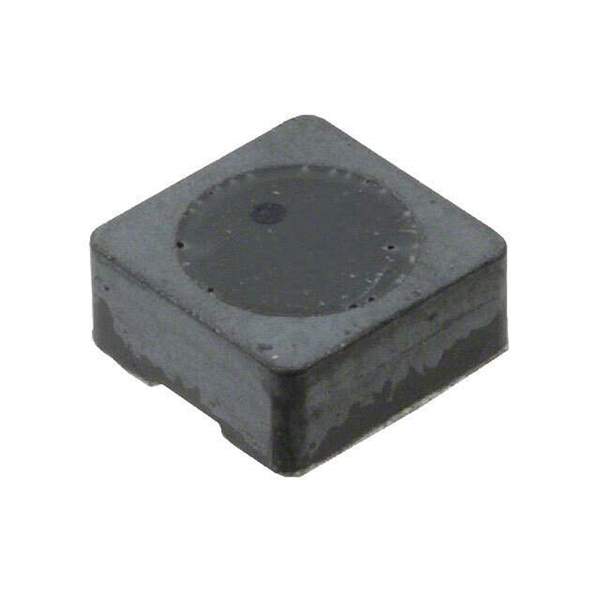

744053008 Real Image

Same model may have multiple batches, images only for reference.

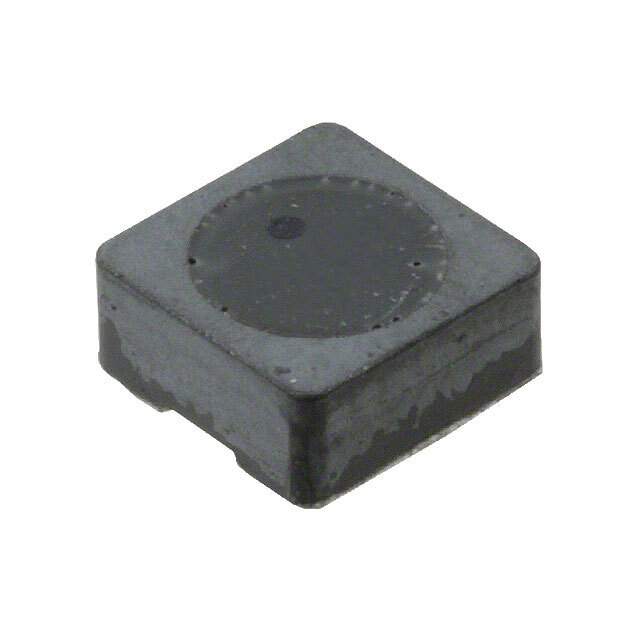

744053008 Real Image

Same model may have multiple batches, images only for reference.

744053008

Get a Quote

Part No	744053008
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 8.2UH 2.1A 55 MOHM SMD
Datasheet	744053008 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	8.2 µH
Tolerance	±30%
Current Rating (Amps)	2.1 A
Current - Saturation (Isat)	1.6A
Shielding	Shielded
DC Resistance (DCR)	55mOhm Max
Frequency - Self Resonant	28MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	2323 (5858 Metric)
Size / Dimension	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	400 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857250-744053008
Ultra Librarian 3D Model	Ultra Librarian 744053008 CAD Model

Alternative Products

Description

The WE-TPC series from Wurth Electronics Inc is a shielded fixed inductor with a drum core and wirewound construction.

Size: 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height: 0.118" (3.00mm)
Inductance: 8.2 µH
Tolerance: ±30%
Maximum DC Resistance (DCR): 55mOhm
Current Rating: 2.1A
Mounting Type: Surface Mount
Package: 2323 (5858 Metric)
Operating Temperature: -40°C to 125°C
Product Status: Active
