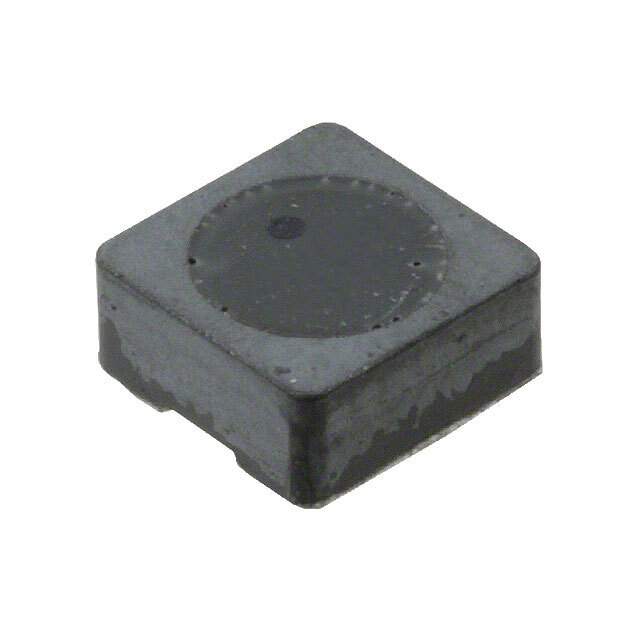

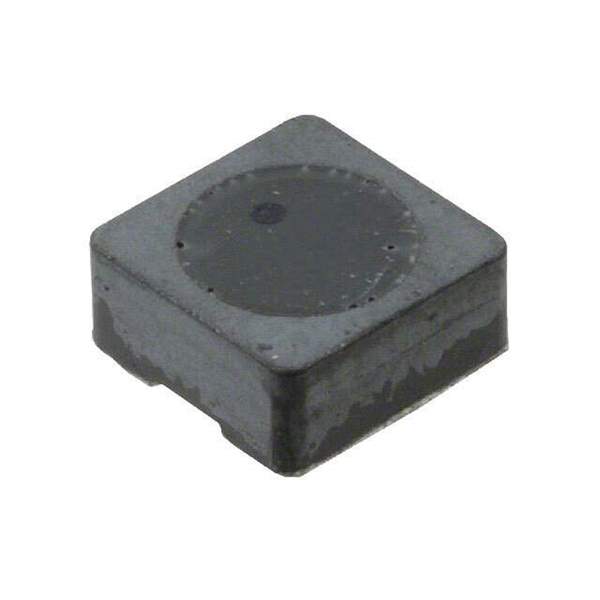

Same model may have multiple batches, images only for reference.

744053470

Name: 744053470
Brand: Wurth Electronics Inc
SKU: 1327594
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744053470
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 47UH 820MA 250MOHM SMD / 47 µH Shielded Drum Core, Wirewound Inductor 820 mA 250mOhm Max 2323 (5858 Metric)
Datasheet	744053470 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	47 µH
Tolerance	±30%
Current Rating (Amps)	820 mA
Current - Saturation (Isat)	650mA
Shielding	Shielded
DC Resistance (DCR)	250mOhm Max
Frequency - Self Resonant	13MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	2323 (5858 Metric)
Size / Dimension	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-1050-2,732-1050-1,732-1050-6
Standard Package	400
Win Source Part Number	1327594-744053470
Ultra Librarian 3D Model	Ultra Librarian 744053470 CAD Model

Alternative Products

Description

The 1327594-744053470 inductor from Würth Elektronik is a shielded, surface mount, drum core, wirewound type inductor.

Size: 0.228" L x 0.228" W (5.80mm x 5.80mm)
Inductance: 47 μH
Maximum Seated Height: 0.118" (3.00mm)
Tolerance: ±30%
DC Resistance (DCR): 250mOhm Max
Frequency Self-Resonant: 13MHz
Standard Package: 400
Current Rating (Amps): 820mA
Compliance: REACH unaffected and ROHS3 compliant
