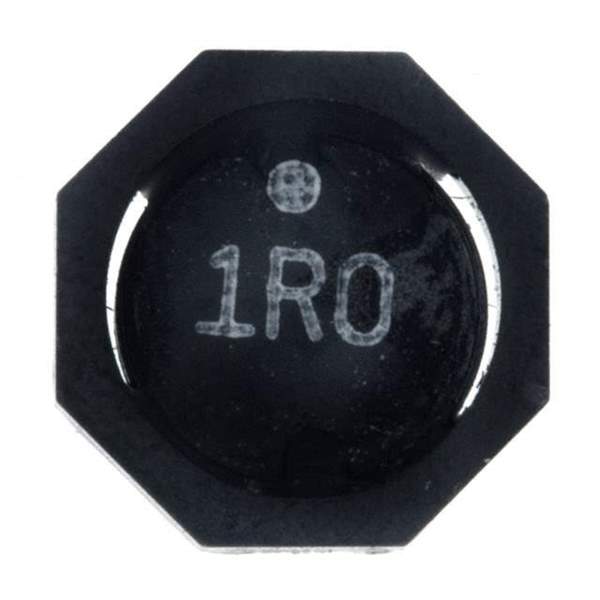

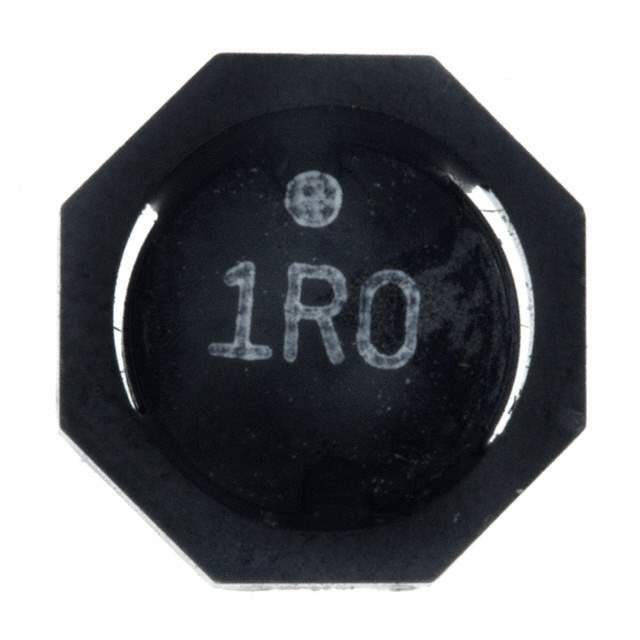

Same model may have multiple batches, images only for reference.

744065121

Name: 744065121
Brand: Wurth Electronics Inc
SKU: 808699
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744065121
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 120UH 900MA 560 MOHM / POWER-CHOKE WE-TPC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	120μH
Tolerance	±30%
Current Rating (Amps)	900mA
Current - Saturation	850mA
Shielding	Shielded
DC Resistance (DCR)	560mOhm Max
Frequency - Self Resonant	6MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Maximum)	0.122" (3.10mm)
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	808700-744065121
Ultra Librarian 3D Model	Ultra Librarian 744065121 CAD Model

Alternative Products

Description

The 744065121 is an electronic component manufactured by Würth Elektronik.

Component Type: Wirewound
Shielding: Yes
Inductance: 120μH (±30%)
Core Material: Ferrite
Current Saturation: 850mA
Self-Resonant Frequency: 6MHz
DC Resistance: 560mOhm Max
Supplier Device Package: Nonstandard
Operating Temperature Range: -40°C ~ 125°C
Dimension: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height Seated: 0.122" (3.10mm)
Manufacturer Pack Quantity: 1,000
MSL Level: 1 (Unlimited)
Current Rating: 900mA
Inductance Frequency Test: 100kHz
Win Source Part Number: 808700-744065121
