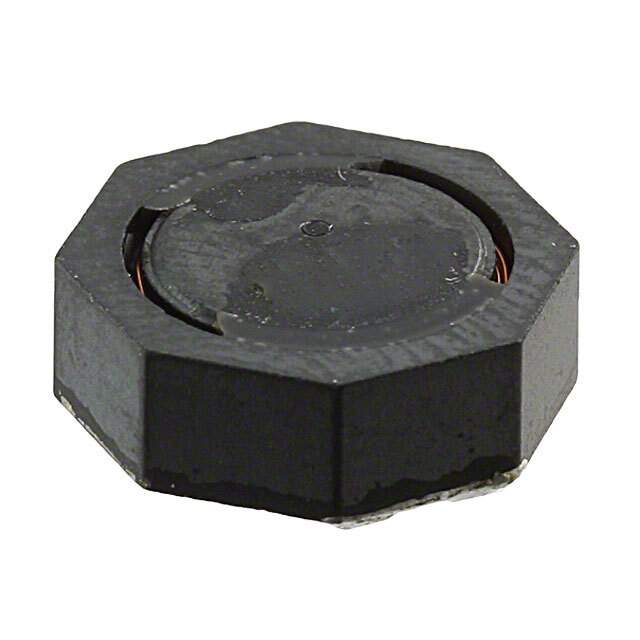

Same model may have multiple batches, images only for reference.

7440660062

Name: 7440660062
Brand: Wurth Electronics Inc
SKU: 1327716
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7440660062
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 6.2UH 4.3A 24 MOHM SMD / 6.2 µH Shielded Drum Core, Wirewound Inductor 4.3 A 24mOhm Max Nonstandard
Datasheet	7440660062 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	6.2 µH
Tolerance	±30%
Current Rating (Amps)	4.3 A
Current - Saturation (Isat)	4.5A
Shielding	Shielded
DC Resistance (DCR)	24mOhm Max
Frequency - Self Resonant	25MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.161" (4.10mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-1075-1,732-1075-2,732-1075-6
Standard Package	800
Win Source Part Number	1327716-7440660062
Ultra Librarian 3D Model	Ultra Librarian 7440660062 CAD Model

Alternative Products

Description

The Würth Elektronik 1327716-7440660062 is a shielded drum core, wirewound fixed inductor.

Inductance: 6.2 µH
Tolerance: ±30%
DC Resistance: 24mOhm max
Current Rating: 4.3A
Material: Ferrite
Self-Resonant Frequency: 25MHz
Operating Temperature: -40°C to 125°C
Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height: 0.161" (4.10mm)
Case: Non-standard
Packaging: Reel of 800 pieces
