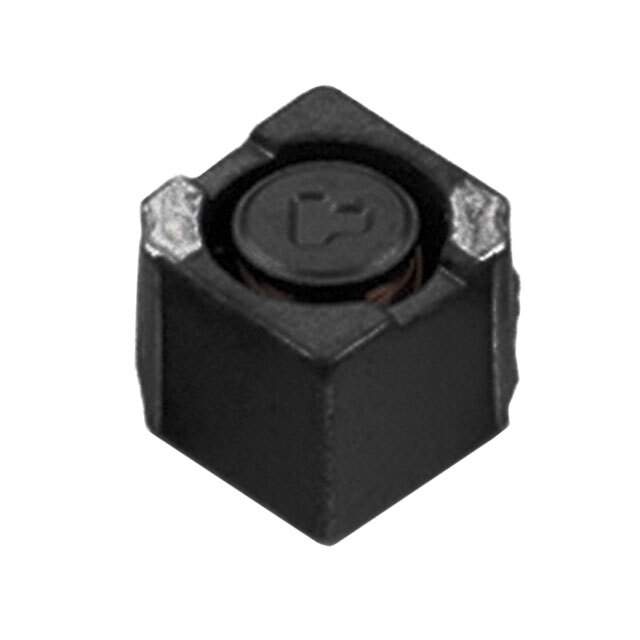

Same model may have multiple batches, images only for reference.

74408943022

Name: 74408943022
Brand: Wurth Electronics Inc
SKU: 857279
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74408943022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 3A 30 MOHM SMD
Datasheet	74408943022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-SPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	3 A
Current - Saturation (Isat)	4.6A
Shielding	Shielded
DC Resistance (DCR)	30mOhm Max
Frequency - Self Resonant	85MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.161" (4.10mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857279-74408943022
Ultra Librarian 3D Model	Ultra Librarian 74408943022 CAD Model

Alternative Products

Description

The WE-SPC series is a line of fixed inductors designed for use in electronic circuits.

Core Type: Drum core, wirewound
Construction: Shielded
Size: 0.189" L x 0.189" W (4.80mm x 4.80mm)
Height: 0.161" (4.10mm)
Inductance: 2.2 µH
Tolerance: ±20%
DC Resistance (DCR): 30mOhm maximum
Current Rating: 3A
Operating Temperature: -40°C to 125°C
Package: Tape & Reel
Pieces Per Package: 500
Material: Ferrite
Self-Resonant Frequency: 85MHz
