Same model may have multiple batches, images only for reference.

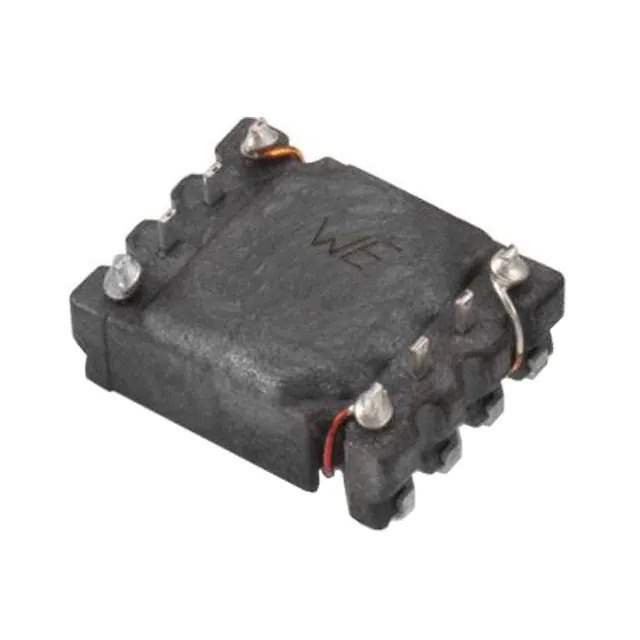

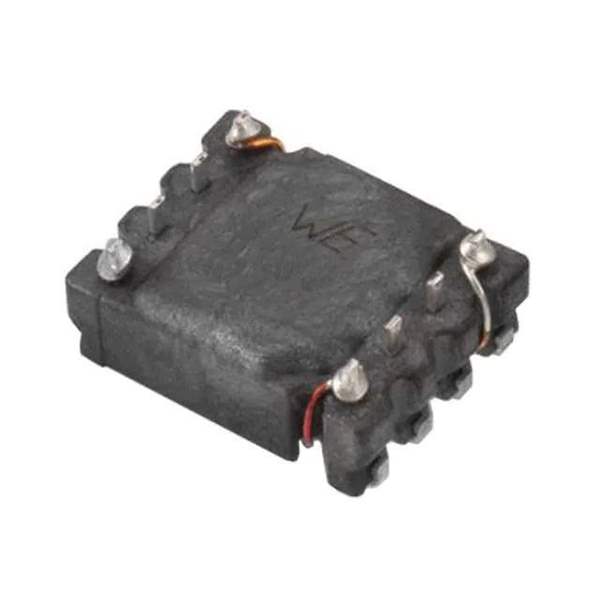

744206 Real Image
Same model may have multiple batches, images only for reference.

744206

Part No 744206
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 60UH 2A 2LN SMD
Datasheet
744206 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 60 µH @ 100 kHz
Current Rating (Max) 2A
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Height (Max) 0.238" (6.05mm)
Package / Case Horizontal, 8 Gull Wing
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547216-744206
Ultra Librarian 3D Model Ultra Librarian 744206 CAD Model

Description

The 547216-744206 is a common mode choke filter designed for signal line applications.

  • Voltage Rating: 80V
  • Maximum Current Rating: 2A
  • Height: 0.238 inches (6.05mm)
  • Mounting: Surface Mount
  • Series: WE-SL
  • Package: Tape and Reel
  • Pieces: 600
  • Temperature Range: -40°C to 125°C
  • REACH Regulations: Unaffected
