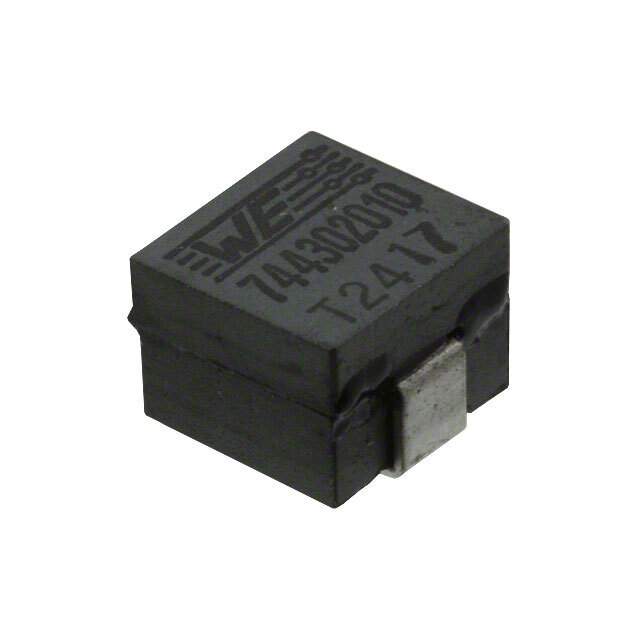

Same model may have multiple batches, images only for reference.

744302010

Name: 744302010
Brand: Wurth Electronics Inc
SKU: 1327836
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744302010
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 105NH 30A 0.235MOHM SM / 105 nH Shielded Drum Core, Wirewound Inductor 30 A 0.235mOhm Nonstandard
Datasheet	744302010 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	105 nH
Tolerance	±20%
Current Rating (Amps)	30 A
Current - Saturation (Isat)	45A
Shielding	Shielded
DC Resistance (DCR)	0.235mOhm
Frequency - Self Resonant	70MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.281" L x 0.276" W (7.15mm x 7.00mm)
Height - Seated (Max)	0.197" (5.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-3697-6,732-3697-2,732-3697-1
Standard Package	1,000
Win Source Part Number	1327836-744302010
Ultra Librarian 3D Model	Ultra Librarian 744302010 CAD Model

Alternative Products

Description

The Würth Elektronik is a fixed inductor that has a shielding feature and a drum core, wirewound type.

Win Source Part Number: 1327836-744302010
Inductance: 105 nH
Tolerance: ±20%
DC Resistance (DCR): 0.235mOhm
Current Rating: 30A
Temperature Range: -40°C ~ 125°C
Frequency Range: 100 kHz (inductance frequency test)
