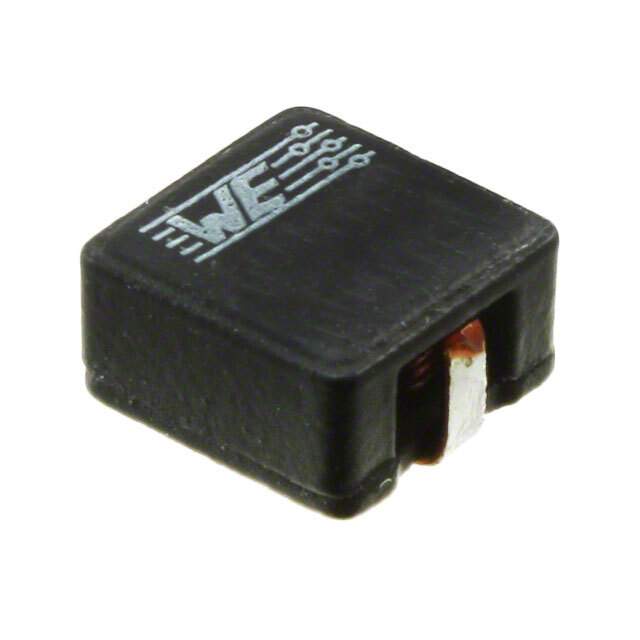

The Wurth Electronics Inc. presents the 744311047, a wirewound type inductor.

• Inductance: The device has an inductance of 400nH
• Tolerance: and a tolerance of ±20%.
• Shielded: The shielded inductor has a current - saturation of 25A
• Frequency: and a frequency - self resonant of 250MHz.
• AEC-Q200: The device is rated AEC-Q200
• DC Resistance: and has a DC resistance (DCR) of 1.85mOhm.
• Package: The device is packaged in a 7040
• Temperature Range: and has a temperature range - operating of -40°C ~ 150°C.
• Popularity: The 744311047 has a medium popularity
• Supply and Demand: and a balanced supply and demand status.
• Manufacturer Pack Quantity: The manufacturer pack quantity is 1
• MSL Level: and the MSL level is 1 (Unlimited).
• Parts Dimension: The parts dimension is 0.276" L x 0.272" W (7.00mm x 6.90mm)
• Current Rating: and the current rating (Amps) is 19A.
• Inductance Frequency: The inductance frequency - test is 100kHz.
