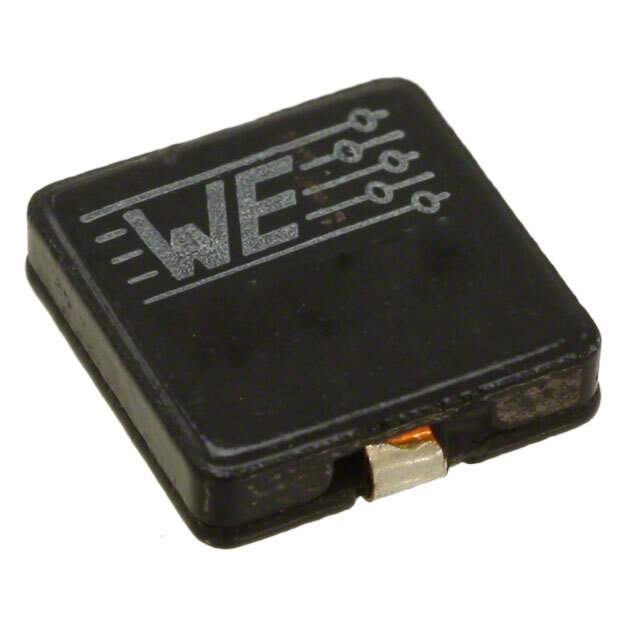

Same model may have multiple batches, images only for reference.

744313330

Name: 744313330
Brand: Wurth Electronics Inc
SKU: 857333
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744313330
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 12A 8.1 MOHM SMD
Datasheet	744313330 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCI
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	3.3 µH
Tolerance	±20%
Current Rating (Amps)	12 A
Current - Saturation (Isat)	14A
Shielding	Shielded
DC Resistance (DCR)	8.1mOhm
Frequency - Self Resonant	30MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	1335
Size / Dimension	0.512" L x 0.504" W (13.00mm x 12.80mm)
Height - Seated (Max)	0.138" (3.50mm)
Standard Package	400 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857333-744313330
Ultra Librarian 3D Model	Ultra Librarian 744313330 CAD Model

Alternative Products

Description

The WE-HCI series of fixed inductors from Wurth Electronics Inc is a reliable and high-quality choice for your electronic projects.

Type: Wirewound
Shielded: Yes
Size: 0.512" L x 0.504" W (13.00mm x 12.80mm)
Inductance: 3.3 µH
Height: 0.138" (3.50mm) (Maximum)
Tolerance: ±20%
DC Resistance (DCR): 8.1mOhm
Current Rating: 12 A (Up to)
Operating Temperature: -40°C to 150°C
AEC-Q200 Rated: Yes
Mounting Type: Surface Mount
Package/Case: Nonstandard
