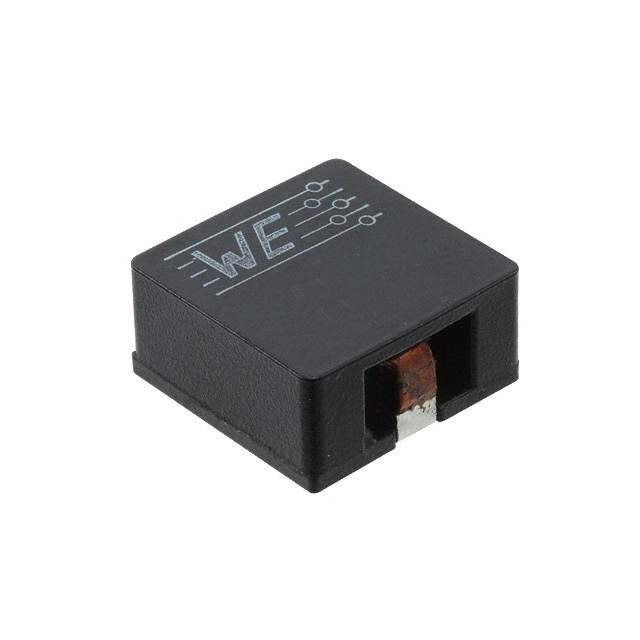

Same model may have multiple batches, images only for reference.

74435581200

Name: 74435581200
Brand: Wurth Electronics Inc
SKU: 810685
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74435581200
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 12UH 19A 4.3 MOHM SMD / WE-HCI SMD Flat Wire High Current Inductor
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	12μH
Tolerance	±20%
Current Rating (Amps)	19A
Current - Saturation	25A
Shielding	Shielded
DC Resistance (DCR)	4.3mOhm
Frequency - Self Resonant	13MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Supplier Device Package	2212
Dimension	0.886" L x 0.866" W (22.50mm x 22.00mm)
Height - Seated (Maximum)	0.488" (12.40mm)
Manufacturer Pack Quantity	120
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	810688-74435581200
Ultra Librarian 3D Model	Ultra Librarian 74435581200 CAD Model

Alternative Products

Description

The 810688-74435581200 is a shielded wirewound inductor from Würth Elektronik.

Inductance: 12μH
Tolerance: ±20%
Current Saturation: 25A
Self-Resonant Frequency: 13MHz
DC Resistance (DCR): 4.3mOhm
Dimension: 0.886" L x 0.866" W (22.50mm x 22.00mm)
Supplier Device Package: 2212
Temperature Range: -40°C to 125°C
Height: 0.488" (12.40mm)
Inductance Frequency Test: 100kHz
Current Rating: 19A
