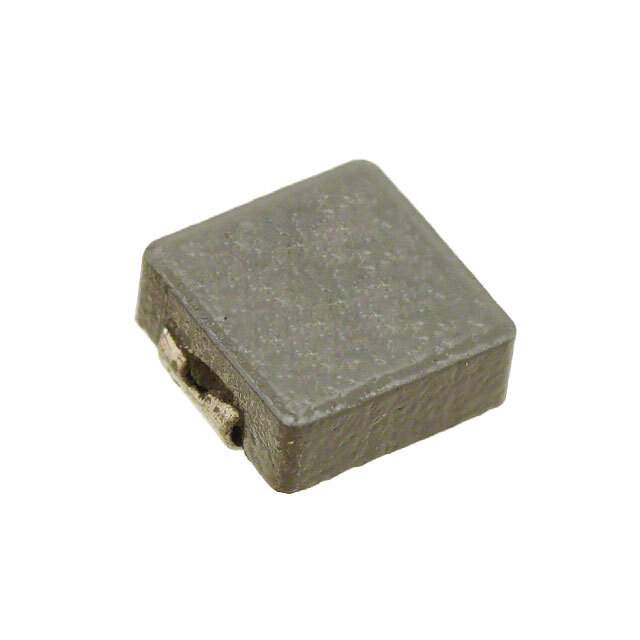

Same model may have multiple batches, images only for reference.

744373460068

Name: 744373460068
Brand: Wurth Electronics Inc
SKU: 857396
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744373460068
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 680NH 11A 5.5 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LHMI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Iron Powder
Inductance	680 nH
Tolerance	±20%
Current Rating (Amps)	11 A
Current - Saturation (Isat)	25A
Shielding	Shielded
DC Resistance (DCR)	5.5mOhm Max
Frequency - Self Resonant	72MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857396-744373460068
Ultra Librarian 3D Model	Ultra Librarian 744373460068 CAD Model

Alternative Products

Description

The WE-LHMI series from Wurth Electronics Inc is a molded, shielded fixed inductor.

Series: WE-LHMI
Size: 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height: 0.118" (3.00mm)
Inductance: 680 nH
Tolerance: ±20%
DC Resistance (DCR): 5.5mOhm Max
Current Rating: 11 A
Temperature Range: -40°C to 125°C
Package: Nonstandard
Packaging: Tape & reel
Core Material: Iron powder
Product Status: Active
