Same model may have multiple batches, images only for reference.

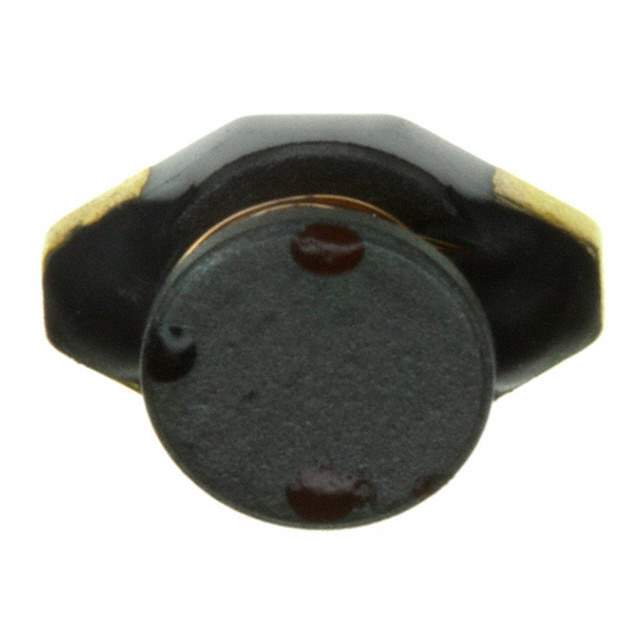

7445520 Real Image
Same model may have multiple batches, images only for reference.

7445520

Part No 7445520
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PD 4 | FIXED IND 100UH 300MA 1.27 OHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 100μH
Tolerance ±20%
Current Rating (Amps) 300mA
Current - Saturation 310mA
Shielding Unshielded
DC Resistance (DCR) 1.27Ohm Max
Frequency - Self Resonant 8MHz
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Maximum) 0.115" (2.92mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130003-7445520
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7445520 CAD Model

Description

The 1130003-7445520 is a wirewound inductor produced by Wurth Electronics Inc. It has an inductance of 100μH and a tolerance of ±20%. The inductor is made of ferrite material and has a DC resistance of 1.27Ohm max. It is designed for use in a variety of applications, including power supplies, DC-DC converters, and filtering circuits. The 1130003-7445520 is a surface-mount device that is packaged on a reel and has a height of 0.115". The supply and demand status is balanced, and the manufacturer pack quantity is 1.

  • Inductance: 100μH
  • Tolerance: ±20%
  • Material: Ferrite
  • DC Resistance: 1.27Ohm max
  • Applications: Power supplies, DC-DC converters, and filtering circuits
  • Mounting: Surface-mount
  • Package: Reel
  • Height: 0.115"
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 1
  • Manufacturer: Wurth Electronics Inc.
