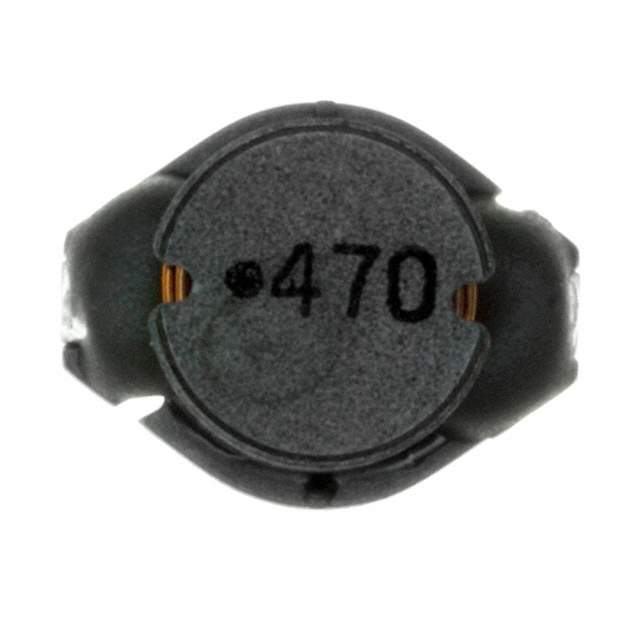

Same model may have multiple batches, images only for reference.

74456147

Name: 74456147
Brand: Wurth Electronics Inc
SKU: 547320
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74456147
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	POWER-CHOKE WE-PD 4 \| FIXED IND 47UH 1.8A 190 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Wurth Electronics Inc.
Packaging	Cut Tape (CT)
Type	Wirewound
Material - Core	Ferrite
Inductance	47μH
Tolerance	±10%
Current Rating (Amps)	1.8A
Current - Saturation	2.14A
Shielding	Unshielded
DC Resistance (DCR)	190mOhm Max
Frequency - Self Resonant	10MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Parts Dimension	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Maximum)	0.209" (5.30mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1130008-74456147
Manufacturer Homepage	www.we-online.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 74456147 CAD Model

Alternative Products

Description

The 1130008-74456147 is a wirewound inductor manufactured by Wurth Electronics Inc. It has an inductance of 47μH with a ±10% tolerance.

Inductance: 47μH
Tolerance: ±10%
Current Rating: 1.8A
DC Resistance: 190mOhm Max
Temperature Range: -40°C to 125°C
Packaging: Cut Tape (CT)
REACH: Unaffected
Part Number: 732-4223-1
