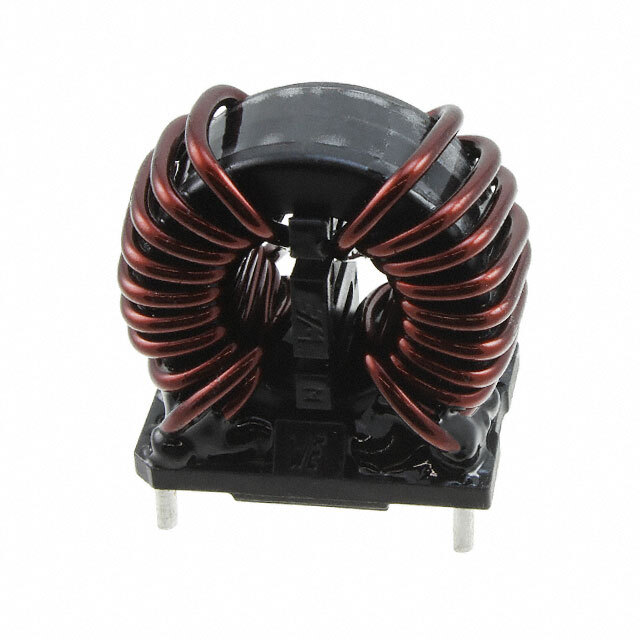

7446823003

Part No 7446823003
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 2.7MH 3A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2.7 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 1.122" L x 1.122" W (28.50mm x 28.50mm)
Height (Max) 0.669" (17.00mm)
Case / Package Horizontal, 4 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1507157-7446823003
Ultra Librarian 3D Model Ultra Librarian 7446823003 CAD Model

Description
