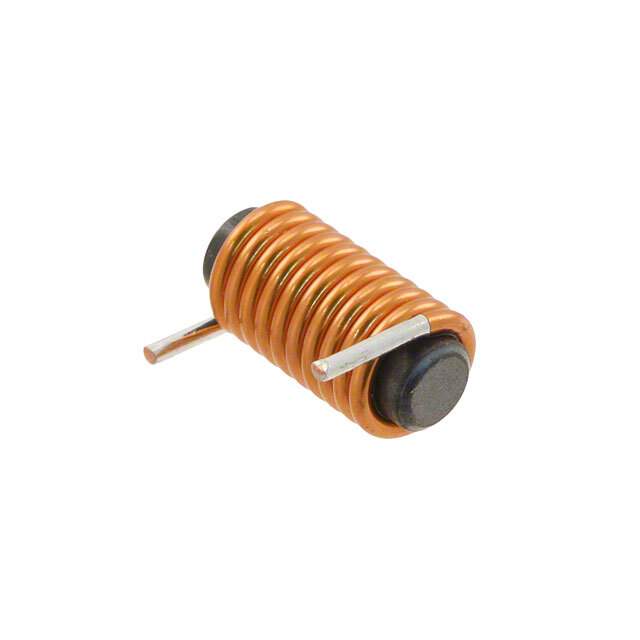

744710210 Real Image
Same model may have multiple batches, images only for reference.

744710210

Part No 744710210
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 2UH 10A 3.8 MOHM TH / 2 µH Unshielded Drum Core, Wirewound Inductor 10 A 3.8mOhm Radial, Horizontal Cylinder (Open)
Datasheet
744710210 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Würth Elektronik
Series WE-SD
Package Bulk
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2 µH
Tolerance ±25%
Current Rating (Amps) 10 A
Shielding Unshielded
DC Resistance (DCR) 3.8mOhm
Frequency - Self Resonant 100MHz
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 10 kHz
Mounting Type Through Hole
Package / Case Radial, Horizontal Cylinder (Open)
Size / Dimension 0.299" Dia x 0.606" L (7.60mm x 15.40mm)
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1341196-744710210
Ultra Librarian 3D Model Ultra Librarian 744710210 CAD Model

Description

The Würth Elektronik WE-SD is a drum core, wirewound inductor that has an inductance of 2 μH and a tolerance of ±25%.

  • Manufacturer: Würth Elektronik
  • Type: Drum Core, Wirewound
  • Inductance: 2 μH
  • Tolerance: ±25%
  • Package: Radial, Horizontal Cylinder (Open)
  • DC Resistance (DCR): 3.8mOhm
  • Temperature Range: -40°C ~ 150°C
  • ECCN: EAR99
  • RoHS: Not Compliant
  • Supply and Demand Status: Low
