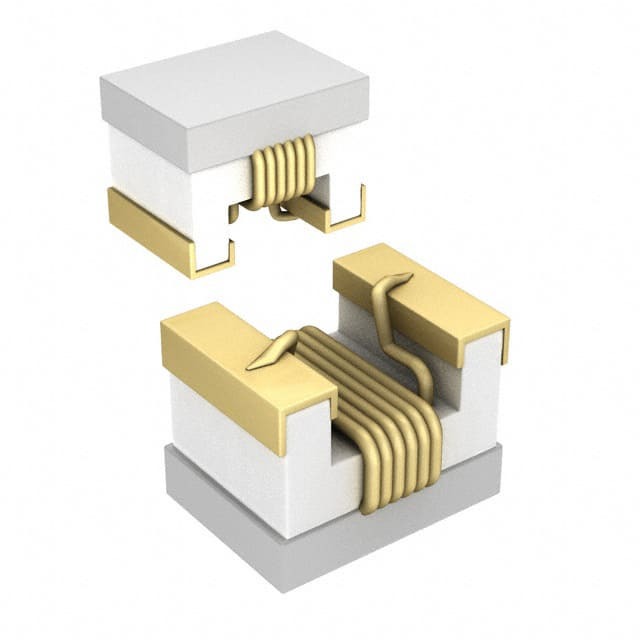

Same model may have multiple batches, images only for reference.

744760056C

Name: 744760056C
Brand: Wurth Electronics Inc
SKU: 857476
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	744760056C
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 5.6NH 600MA 100MOHM SM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	5.6 nH
Tolerance	±5%
Current Rating (Amps)	600 mA
Shielding	Unshielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	40 @ 1GHz
Frequency - Self Resonant	5.5GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	0805
Size / Dimension	0.090" L x 0.067" W (2.29mm x 1.70mm)
Height - Seated (Max)	0.058" (1.48mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857476-744760056C
Ultra Librarian 3D Model	Ultra Librarian 744760056C CAD Model

Alternative Products

Description

The WE-KI series is a range of drum core, wirewound inductors designed for use in electronic applications that require compact size and high frequency performance. Manufactured by Wurth Electronics Inc, these inductors offer excellent performance and reliability.

Size: 0.090" L x 0.067" W (2.29mm x 1.70mm)
Height: 0.058" (1.48mm)
Inductance: 5.6 nH
Tolerance: ±5%
Mounting: Surface mountable
Package: Nonstandard
Shielding: Unshielded
Q Factor: 40 @ 1GHz
DC Resistance (DCR): 100mOhm Max
Current Rating: 600 mA
Temperature Range: -40°C to 125°C
Standard Package: 2,000 pcs
