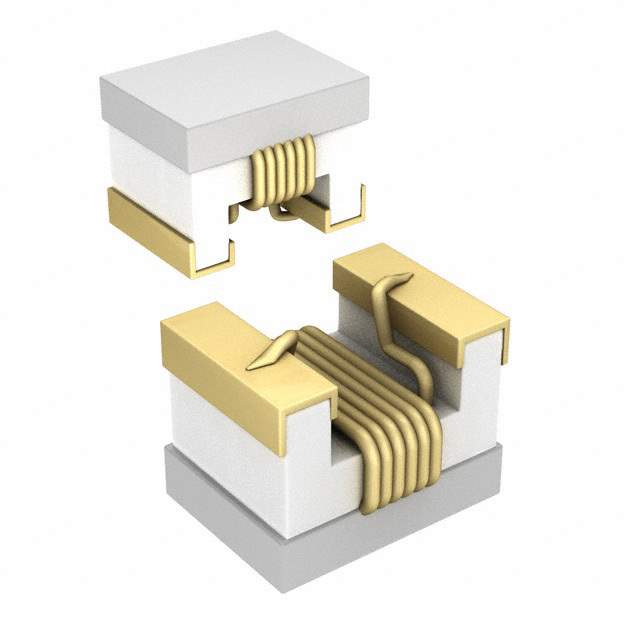

Same model may have multiple batches, images only for reference.

74476013C

Name: 74476013C
Brand: Wurth Electronics Inc
SKU: 1163131
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	74476013C
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 33NH 500MA 270MOHM SMD / 33 nH Unshielded Drum Core, Wirewound Inductor 500 mA 270mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Würth Elektronik
Series	WE-KI
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	33 nH
Tolerance	±5%
Current Rating (Amps)	500 mA
Shielding	Unshielded
DC Resistance (DCR)	270mOhm Max
Q @ Freq	60 @ 500MHz
Frequency - Self Resonant	2.05GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Supplier Device Package	0805
Dimension	0.090" L x 0.067" W (2.29mm x 1.70mm)
Height - Seated (Max)	0.058" (1.48mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	732-1783-2,732-1783-1,732-1783-6
Standard Package	2,000
Win Source Part Number	1163131-74476013C
Ultra Librarian 3D Model	Ultra Librarian 74476013C CAD Model

Alternative Products

Description

The WE-KI series fixed inductor is a drum core, wirewound type inductor with an inductance of 33nH, which is manufactured by Würth Elektronik.

Package/Case: nonstandard
Packaging: tape and reel
Standard Package: 2000
Shielded: unshielded
Height when seated: 0.058" (1.48mm)
Mounting: SMD (SMT)
Tolerance: ±5%
Material Core: ceramic
Q @ Freq: 60 @ 500MHz
Self-Resonant Frequency: 2.05GHz
DC Resistance (DCR): 270mOhm Max
Supplier Device Package: 0805
Operating Temperature: -40°C ~ 125°C
ECCN: EAR99
Current Rating: 500mA
Inductance Frequency Test: 250MHz
REACH: unaffected
HTSUS: 8504.50.8000
