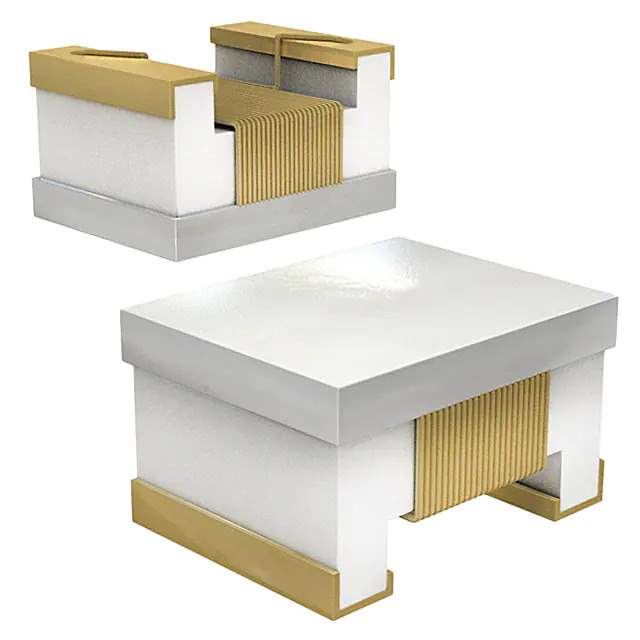

744762422A

Name: 744762422A
Brand: Wurth Electronics Inc
SKU: 857507
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744762422A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 22UH 110MA 5 OHM SMD
Datasheet	744762422A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-RFI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±5%
Current Rating (Amps)	110 mA
Shielding	Unshielded
DC Resistance (DCR)	5Ohm Max
Q @ Freq	15 @ 2.52MHz
Frequency - Self Resonant	22MHz
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	2.52 MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.102" L x 0.083" W (2.60mm x 2.10mm)
Height - Seated (Max)	0.075" (1.90mm)
Standard Package	2,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857507-744762422A
Ultra Librarian 3D Model	Ultra Librarian 744762422A CAD Model

Alternative Products

Description

The WE-RFI series is a drum core, wirewound inductor designed for a wide range of electronic applications.

Size: 0.102" L x 0.083" W (2.60mm x 2.10mm)
Shielding: Unshielded
Inductance: 22 µH
Tolerance: ±5%
Height: 0.075" (1.90mm)
DC Resistance (DCR): 5Ohm Max
Current Rating: 110 mA
Operating Temperature: -40°C to 85°C
Mounting Type: Surface Mount
Package: 1008 (2520 Metric)
Core Material: Ferrite
Frequency Self-Resonant: 22MHz
