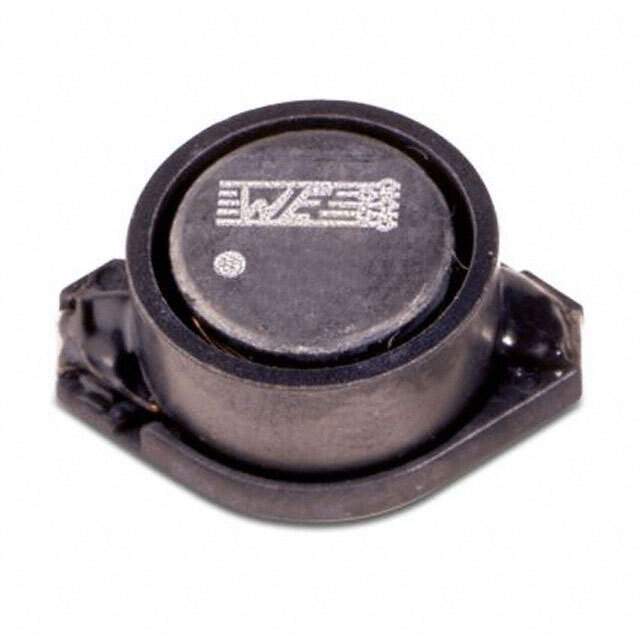

Same model may have multiple batches, images only for reference.

74454115

Name: 74454115
Brand: Wurth Electronics Inc
SKU: 804481
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74454115
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	WE-PD3 SMT SHIELDED POWER INDUCT / POWER-CHOKE WE-PD 3
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	15μH
Tolerance	±20%
Current Rating (Amps)	1.7A
Current - Saturation	3A
Shielding	Shielded
DC Resistance (DCR)	85mOhm Max
Frequency - Self Resonant	20MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.500" L x 0.394" W (12.70mm x 10.00mm)
Height - Seated (Maximum)	0.205" (5.20mm)
Manufacturer Pack Quantity	600
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	804481-74454115
Ultra Librarian 3D Model	Ultra Librarian 74454115 CAD Model

Alternative Products

Description

The Würth Elektronik 804481-74454115 is a wirewound type inductor that is shielded and has an inductance of 15μH.

Inductance: 15μH
Tolerance: ±20%
Material: Ferrite
Current Saturation: 3A
Frequency Self-Resonant: 20MHz
DC Resistance (DCR): 85mOhm Max
Temperature Range: -40°C ~ 125°C
