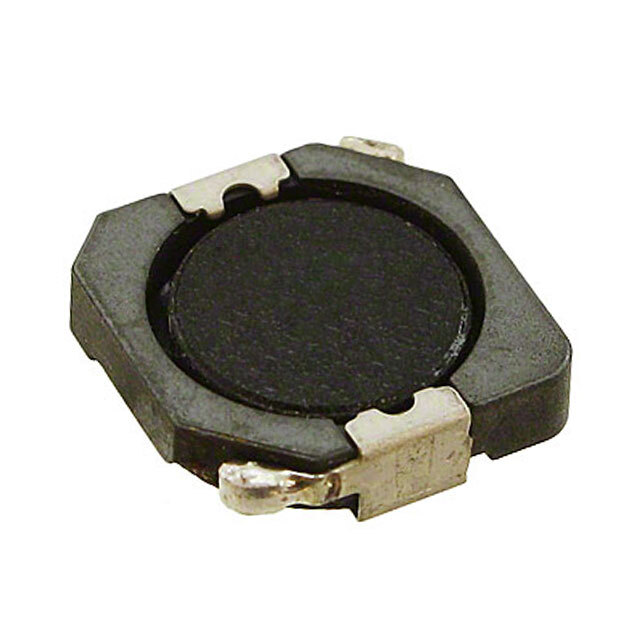

Same model may have multiple batches, images only for reference.

7447713047

Name: 7447713047
Brand: Wurth Electronics Inc
SKU: 1481630
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447713047
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	4.7 µH Shielded Drum Core, Wirewound Inductor 4 A 31mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Würth Elektronik
Series	WE-PD Performance
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	4.7 µH
Tolerance	±30%
Current Rating (Amps)	4 A
Current - Saturation (Isat)	6A
Shielding	Shielded
DC Resistance (DCR)	31mOhm Max
Frequency - Self Resonant	42MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1481630-7447713047
Ultra Librarian 3D Model	Ultra Librarian 7447713047 CAD Model
