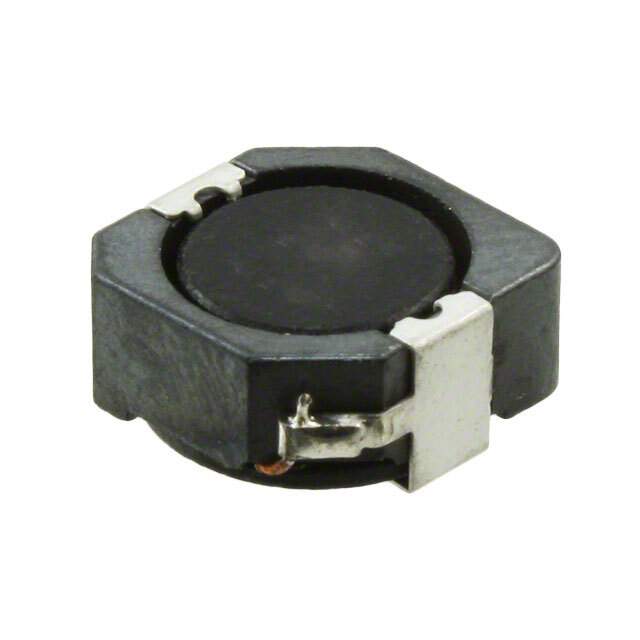

7447714033 Real Image1 7447714033 Real Image2
Same model may have multiple batches, images only for reference.
7447714033 Real Image1 7447714033 Real Image2
7447714033 Real Image1 7447714033 Real Image2
Same model may have multiple batches, images only for reference.

7447714033

Part No 7447714033
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 3.3UH 7.5A 10.5MOHM SM / 3.3 µH Shielded Drum Core, Wirewound Inductor 7.5 A 10.5mOhm Max Nonstandard
Datasheet
7447714033 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD Performance
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±30%
Current Rating (Amps) 7.5 A
Current - Saturation (Isat) 9A
Shielding Shielded
DC Resistance (DCR) 10.5mOhm Max
Q @ Freq -
Frequency - Self Resonant 42MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500 pcs
Win Source Part Number 1381110-7447714033
Ultra Librarian 3D Model Ultra Librarian 7447714033 CAD Model

Description

The WE-PD Performance series inductor is a high-performance component designed for various electronic applications manufactured by Wurth Electronics Inc.

  • Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Inductor Type: Drum Core, Wirewound
  • Inductance: 3.3 µH
  • Tolerance: ±30%
  • Shielding: Shielded
  • Maximum Seated Height: 0.197" (5.00mm)
  • Mounting Type: Surface Mountable
  • Package: Nonstandard
  • DC Resistance (DCR): 10.5mOhm
  • Current Rating: 7.5A
  • Operating Temperature: -40°C to 125°C
  • AEC-Q200 Rated: Yes
