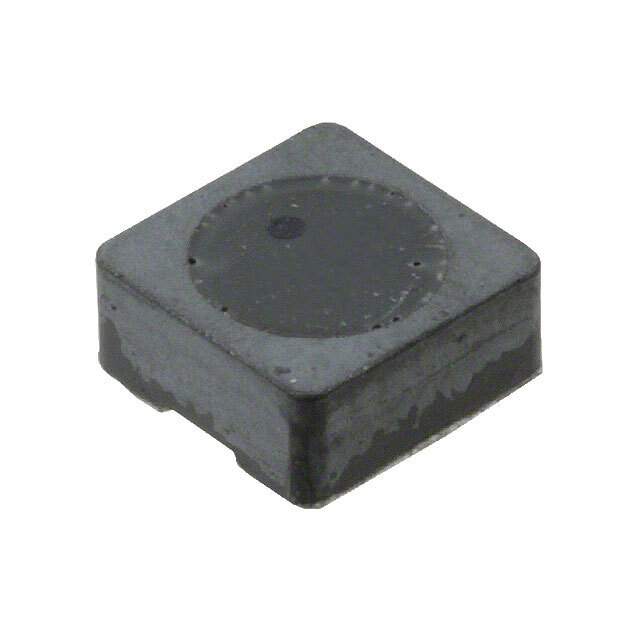

744053220

Name: 744053220
Brand: Wurth Electronics Inc
SKU: 857253
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744053220
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 22UH 1.15A 120MOHM SMD
Datasheet	744053220 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	22 µH
Tolerance	±30%
Current Rating (Amps)	1.15 A
Current - Saturation (Isat)	900mA
Shielding	Shielded
DC Resistance (DCR)	120mOhm Max
Frequency - Self Resonant	20MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	2323 (5858 Metric)
Size / Dimension	0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	400 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857253-744053220
Ultra Librarian 3D Model	Ultra Librarian 744053220 CAD Model

Alternative Products

Description

The WE-TPC series is a line of drum core, wirewound inductors designed for use in various electronic applications.

Size: 0.228" L x 0.228" W (5.80mm x 5.80mm)
Inductance: 22 µH
DC Resistance: 120mOhm Max
Shielding: Shielded
Temperature Range: -40°C to 125°C
Mounting: Surface Mountable
Package: Tape & Reel
Current Rating: 1.15 A
Saturation Current: 900mA
