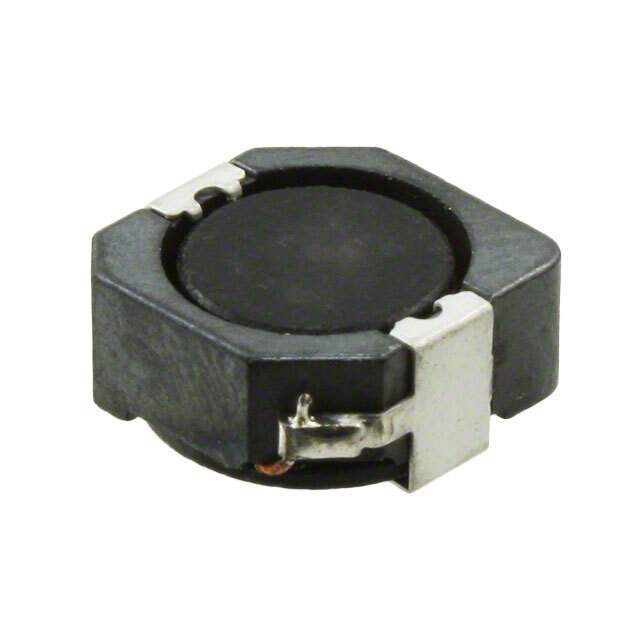

Same model may have multiple batches, images only for reference.

7447714680

Name: 7447714680
Brand: Wurth Electronics Inc
SKU: 1327721
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447714680
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 68UH 1.9A 132 MOHM SMD / 68 µH Shielded Drum Core, Wirewound Inductor 1.9 A 132mOhm Max Nonstandard
Datasheet	7447714680 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	68 µH
Tolerance	±20%
Current Rating (Amps)	1.9 A
Current - Saturation (Isat)	2.2A
Shielding	Shielded
DC Resistance (DCR)	132mOhm Max
Frequency - Self Resonant	8MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.197" (5.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-2995-1,732-2995-2,732-2995-6
Standard Package	500
Win Source Part Number	1327721-7447714680
Ultra Librarian 3D Model	Ultra Librarian 7447714680 CAD Model

Alternative Products

Description

The Würth Elektronik 7447714680 is a high-quality surface mount inductor that is designed for use in a variety of applications.

Shielding: Shielded
Tolerance: ±20%
Current Rating: 1.9A
Operating Temperature: -40°C to 125°C
DC Resistance (DCR): 132mOhm max
AEC-Q200 Rated: Yes
