Same model may have multiple batches, images only for reference.

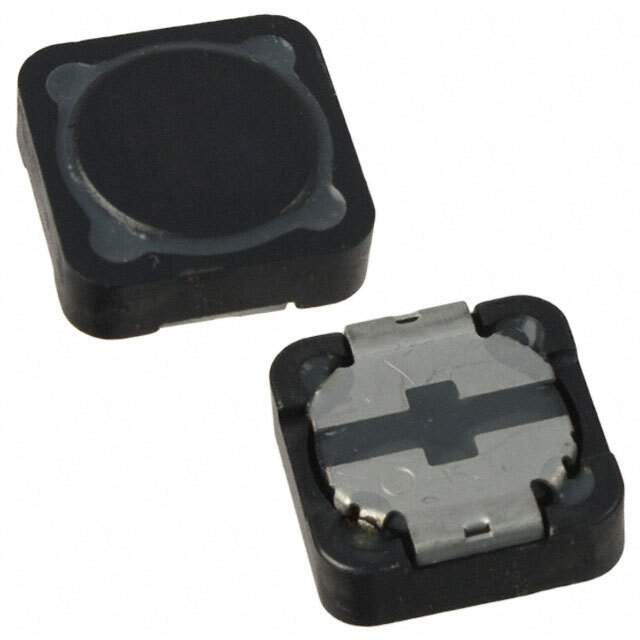

7447715180 Real Image
Same model may have multiple batches, images only for reference.

7447715180

Part No 7447715180
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 18UH 3.2A 51 MOHM SMD / POWER-CHOKE WE-PD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 18μH
Tolerance ±20%
Current Rating (Amps) 3.2A
Current - Saturation 3.2A
Shielding Shielded
DC Resistance (DCR) 51mOhm Max
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 805694-7447715180
Ultra Librarian 3D Model Ultra Librarian 7447715180 CAD Model

Description

The Würth Elektronik 805694-7447715180, from Würth Elektronik, is a wirewound inductor that is shielded and designed for surface mount applications.

  • Inductance: 18μH
  • Tolerance: ±20%
  • Material: Ferrite
  • DC Resistance (DCR): 51mOhm (Maximum)
  • Operating Temperature: -40°C to 125°C
  • Dimension: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Win Source Part Number: 805694-7447715180
