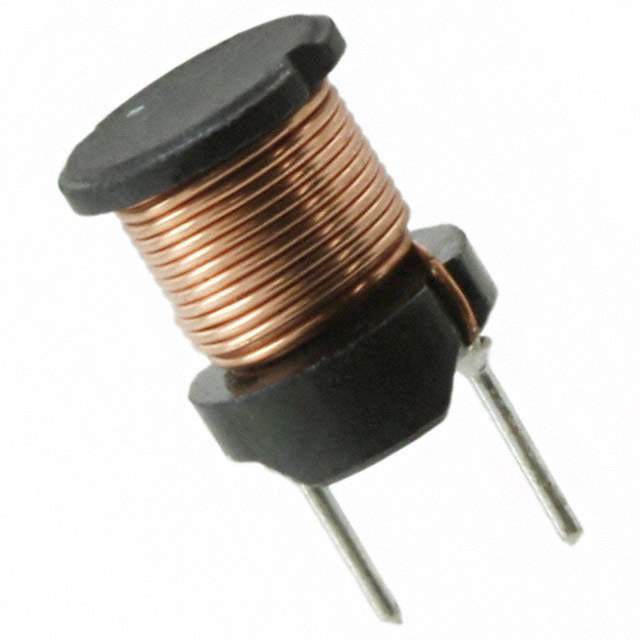

744772820 Real Image
Same model may have multiple batches, images only for reference.

744772820

Part No 744772820
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 82UH 1.45A 160 MOHM TH / 82 µH Unshielded Drum Core, Wirewound Inductor 1.45 A 160mOhm Max Radial, Vertical Cylinder (Open)
Datasheet
744772820 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Tray
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 82 µH
Tolerance ±10%
Current Rating (Amps) 1.45 A
Current - Saturation (Isat) 1.9A
Shielding Unshielded
DC Resistance (DCR) 160mOhm Max
Frequency - Self Resonant 6.1MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Through Hole
Case / Package Radial, Vertical Cylinder (Open)
Size / Dimension 0.307" Dia (7.80mm)
Height - Seated (Max) 0.394" (10.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-3772
Standard Package 140
Win Source Part Number 1327544-744772820
Ultra Librarian 3D Model Ultra Librarian 744772820 CAD Model

Description

The 1327544-744772820 is a drum core, wirewound inductor manufactured by Würth Elektronik.

  • Type: drum core, wirewound
  • Size/Dimension: 0.307 inches (7.80mm)
  • Inductance: 82μH
  • Height - Seated (Max): 0.394 inches (10.00mm)
  • Mounting Type: through hole
  • Tolerance: ±10%
  • Core Material: ferrite
  • DC Resistance (DCR): 160mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Case/Package: radial, vertical cylinder (open)
  • Popularity: low
