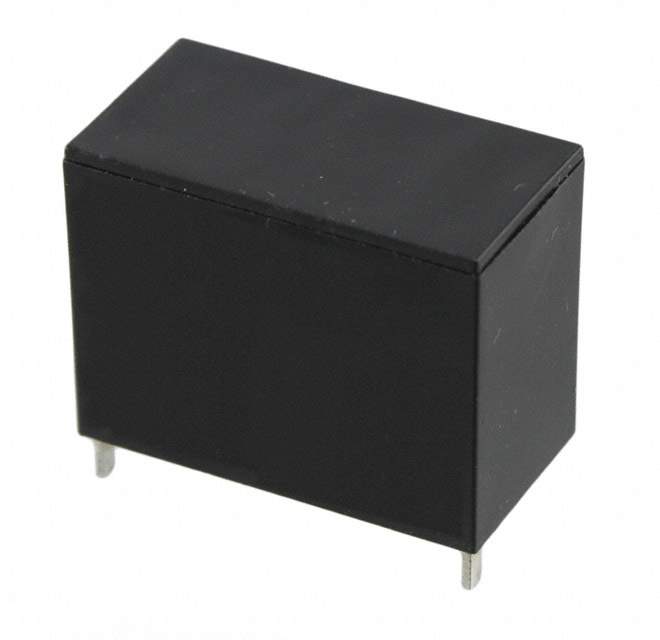

ALFG1PF18 Real Image
Same model may have multiple batches, images only for reference.

ALFG1PF18

Part No ALFG1PF18
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 25A 18V / General Purpose Relay SPST-NO (1 Form A) 18VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series ALFG
Package Bulk
Mounting Type Through Hole
Coil Voltage 18VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 25 A
Switching Voltage 250VAC - Max
Coil Current 78 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 12.6 VDC
Must Release Voltage 1.8 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 230 Ohms
Base Product Number ALFG1P
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-2636
Standard Package 50
Win Source Part Number 1027811-ALFG1PF18
Ultra Librarian 3D Model Ultra Librarian ALFG1PF18 CAD Model

Description

The Panasonic Electric Works ALFG1PF18 is a general-purpose power relay with a SPST-NO contact configuration.

  • Manufacturer: Panasonic Electric Works
  • Part: ALFG1PF18
  • Contact Configuration: SPST-NO
  • Contact Rating: 25A @ 250VAC
  • Coil Voltage: 18VDC
  • Operate Time: 20ms
  • Release Time: 10ms
  • Package: Through-hole
  • Ideal for: Power switching applications
  • Availability: Available in other coil voltages and contact configurations.
  • Description: If you need a reliable and high-performance power relay, the Panasonic Electric Works ALFG1PF18 is an excellent choice.
