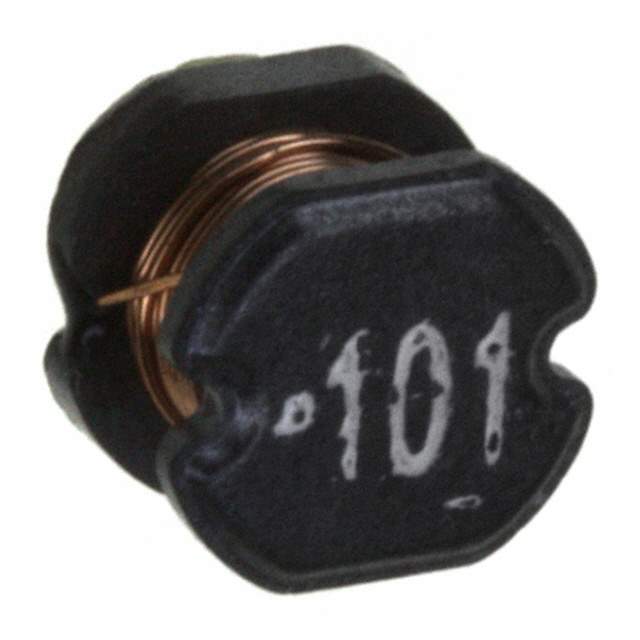

74477420

Name: 74477420
Brand: Wurth Electronics Inc
SKU: 857554
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74477420
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 100UH 570MA 650MOHM SM
Datasheet	74477420 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PD2
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±10%
Current Rating (Amps)	570 mA
Current - Saturation (Isat)	680mA
Shielding	Unshielded
DC Resistance (DCR)	650mOhm Max
Frequency - Self Resonant	7.5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	10 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)	0.191" (4.85mm)
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857554-74477420
Ultra Librarian 3D Model	Ultra Librarian 74477420 CAD Model

Alternative Products

Description

The WE-PD2 series inductor is a drum core, wirewound fixed inductor designed for use in electronic circuits.

Size: 0.228" L x 0.205" W (5.80mm x 5.20mm)
Height: 0.191" (4.85mm)
Inductance: 100µH
Tolerance: ±10%
DC Resistance (DCR): 650mOhm maximum
Core Material: Ferrite
Self-Resonant Frequency: 7.5MHz
Operating Temperature: -40°C to 125°C
Current Rating: 570mA
Mounting Type: Surface Mount
