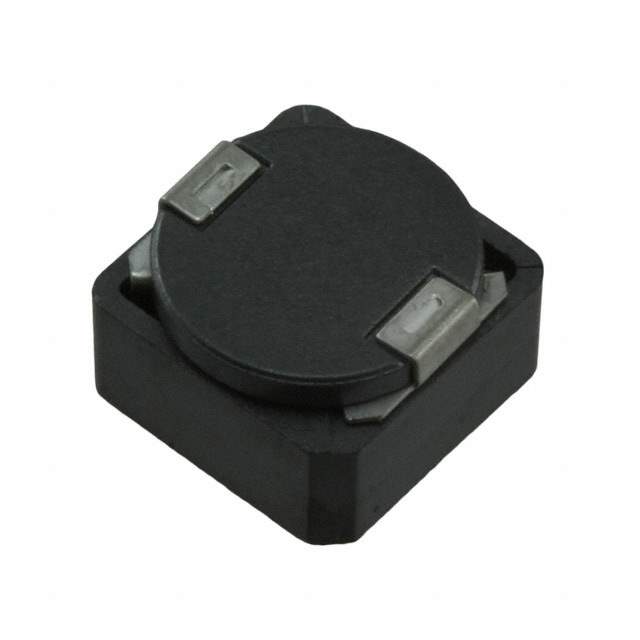

7447797360

Name: 7447797360
Brand: Wurth Electronics Inc
SKU: 857590
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	7447797360
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 3.6UH 8.2A 12.2MOHM SM
Datasheet	7447797360 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PDF
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Nickel Zinc Ferrite (NiZn)
Inductance	3.6 µH
Tolerance	±20%
Current Rating (Amps)	8.2 A
Current - Saturation (Isat)	8.5A
Shielding	Shielded
DC Resistance (DCR)	12.2mOhm Max
Frequency - Self Resonant	55MHz
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max)	0.177" (4.50mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857590-7447797360
Ultra Librarian 3D Model	Ultra Librarian 7447797360 CAD Model

Alternative Products

Description

The WE-PDF series from Wurth Electronics Inc is a drum core, wirewound inductor with a shielded package.

Size: 0.402" L x 0.402" W (10.20mm x 10.20mm)
Inductance: 3.6 μH
Mounting Type: Surface Mount
Seated Height: 0.177" (4.50mm)
Tolerance: ±20%
DC Resistance (DCR): 12.2mOhm max
Core Material: Nickel zinc ferrite (NiZn)
Self-Resonant Frequency: 55MHz
Temperature Range: -40°C to 150°C
Current Rating: 8.2A
