Same model may have multiple batches, images only for reference.

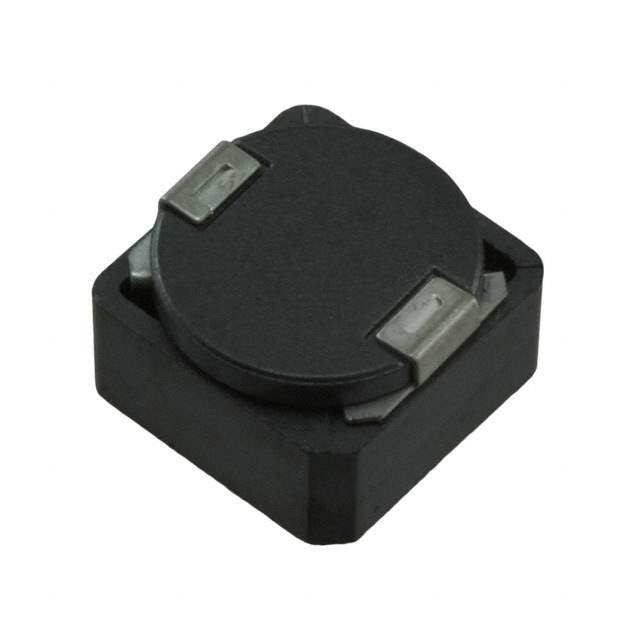

7447798910 Real Image
Same model may have multiple batches, images only for reference.

7447798910

Part No 7447798910
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description POWER-CHOKE WE-PDF | FIXED IND 9.1UH 7.35A 14.35 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel
Type Wirewound
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 9.1μH
Tolerance ±30%
Current Rating (Amps) 7.35A
Current - Saturation 5.4A
Shielding Shielded
DC Resistance (DCR) 14.35mOhm Max
Frequency - Self Resonant 27MHz
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Maximum) 0.252" (6.40mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1130104-7447798910
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 7447798910 CAD Model

Description

The Wurth Electronics Inc. 1130104-7447798910 is a wirewound type electronic component that is packaged in a reel.

  • Mounting Style: SMD
  • Shielding: shielded
  • Inductance: 9.1μH
  • Tolerance: ±30%
  • Material - Core: Nickel Zinc Ferrite (NiZn)
  • Current - Saturation: 5.4A
  • Frequency - Self-Resonant: 27MHz
  • Categories: inductors, coils, chokes
  • DC Resistance (DCR): 14.35mOhm Max
  • Temperature Range - Operating: -40°C ~ 150°C
  • Manufacturer Homepage: www.we-online.com
  • Manufacturer Package: nonstandard
  • Height - Seated (Maximum): 0.252" (6.40mm)
  • Supply and Demand Status: limited
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.402" L x 0.402" W (10.20mm x 10.20mm)
  • Current Rating (Amps): 7.35A
  • Inductance Frequency - Test: 100kHz
