Same model may have multiple batches, images only for reference.

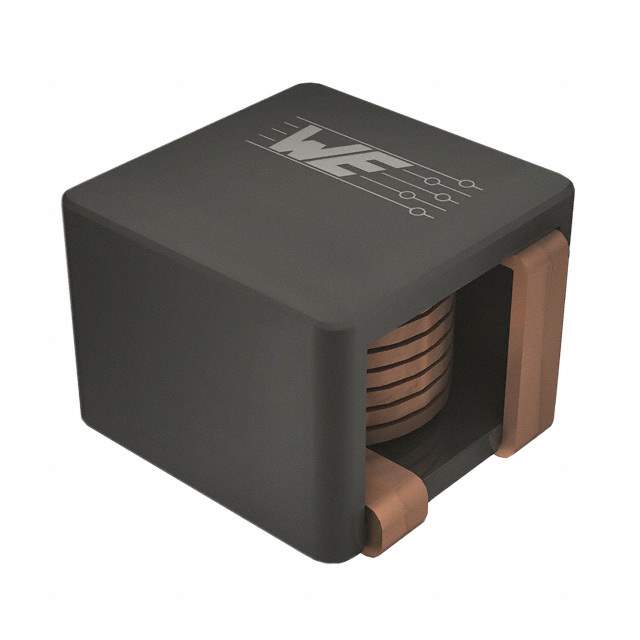

74485540350 Real Image
Same model may have multiple batches, images only for reference.

74485540350

Part No 74485540350
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 3.5UH SMD / Shielded 2 Coil Inductor Array 14 µH Inductance - Connected in Series 3.5 µH Inductance - Connected in Parallel 12mOhm Max DC Resistance (DCR) - Parallel 14 A 4-SMD
Datasheet
74485540350 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Manufacturer Würth Elektronik
Packaging Reel - TR
Number of Coils 2
Inductance - Connected In Parallel 3.5 µH
Inductance - Connected In Series 14 µH
Tolerance ±20%
Current Rating - Parallel 14 A
Current Rating - Series 7 A
Current Saturation - Parallel 27 A
Current Saturation - Series 13.5 A
DC Resistance (DCR) - Parallel 12mOhm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 150°C
Mounting Surface Mount
Case / Package 4-SMD
Size / Dimension 0.610" L x 0.520" W (15.50mm x 13.20mm)
Height 0.413" (10.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-4564-6,732-4564-1,732-4564-2
Standard Package 300
Win Source Part Number 1327638-74485540350
Ultra Librarian 3D Model Ultra Librarian 74485540350 CAD Model

Description

The 1327638-74485540350 from Würth Elektronik is a shielded inductor array that measures 0.610 inches in length and 0.520 inches in width.

  • Height: 0.413 inches
  • Number of Coils: Two
  • Inductance (Series): 14 µH
  • Inductance (Parallel): 3.5 µH
  • Current Rating (Series): 7 A
  • Current Rating (Parallel): 14 A
  • Current Saturation (Series): 13.5 A
  • Current Saturation (Parallel): 27 A
  • DC Resistance (DCR) (Parallel): 12mOhm max
  • Operating Temperature Range: -40°C to 150°C
  • Case/Package: 4-SMD
  • Compliance: ROHS3
