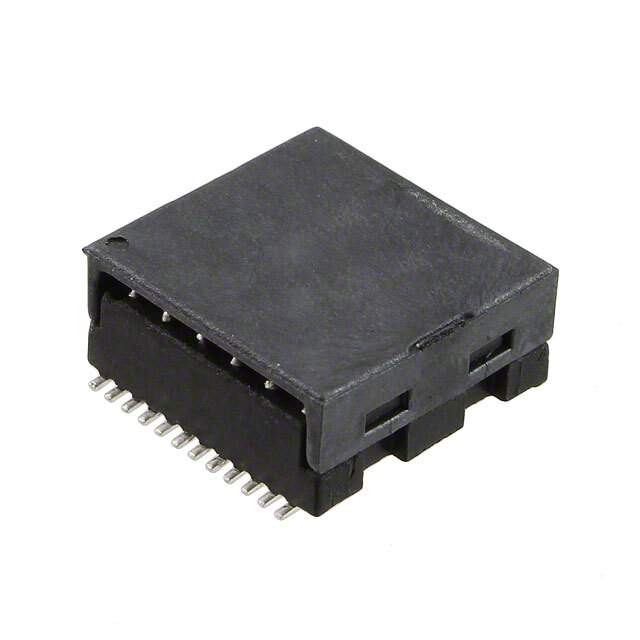

749053011 Real Image1 749053011 Real Image2
749053011 Real Image1 749053011 Real Image2
Same model may have multiple batches, images only for reference.

749053011

Part No 749053011
Manufacturer Wurth Electronics Inc
Catalog Pulse Transformers
Description TRANSFORMER LAN / 200µH LAN Pulse Transformer 1:1 Surface Mount
Datasheet
749053011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Wurth Electronics Inc
Series WE-LAN
Package Tape & Reel
Transformer Type LAN
Inductance 200µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.550" L x 0.532" W (13.97mm x 13.50mm)
Height - Seated (Max) 0.260" (6.60mm)
Temperature Range - Operating 0°C ~ 70°C
Weight -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 450 pcs
Win Source Part Number 1381147-749053011
Ultra Librarian 3D Model Ultra Librarian 749053011 CAD Model

Description

The WE-LAN series pulse transformer is a high-quality electronic component manufactured by Wurth Electronics Inc.

  • Application: LAN
  • Mounting Type: Surface Mountable
  • Size: 0.550" L x 0.532" W (13.97mm x 13.50mm)
  • Inductance: 200µH
  • Height: 0.260" (6.60mm)
  • Operating Temperature: 0°C to 70°C
