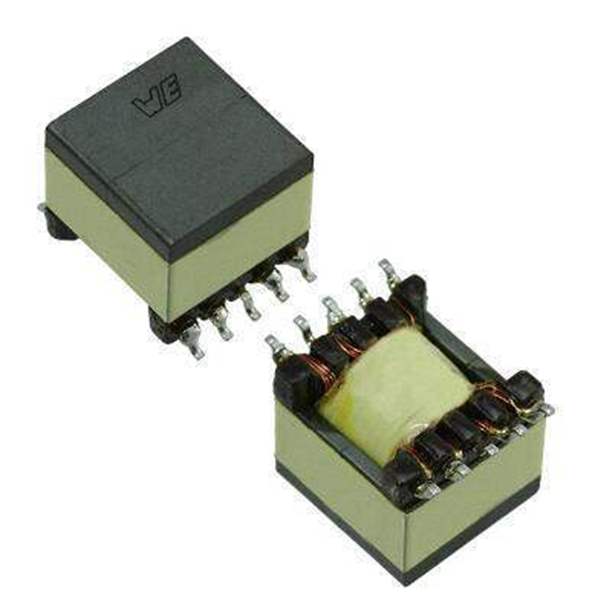

750311564Würth Elektronik
Same model may have multiple batches, images only for reference.

750311564

Part No 750311564
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description XFMR FLYBCK DC/DC CONV 9.07UH SM
Datasheet
750311564 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Transformers Switching Converter, SMPS Transformers
Product Status Active
Type For DC/DC Converters
Applications Flyback Converters
Intended Chipset LT3573, LT3574, LT3575, LT3748
Chipset Manufacturer Linear Technology
Voltage - Primary 10 ~ 40V
Voltage - Auxiliary 8V @ 20mA
Voltage - Isolation 1500Vrms
Frequency 100kHz
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Win Source Part Number WS1210701-750311564
Ultra Librarian 3D Model Ultra Librarian 750311564 CAD Model

Description

Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 100kHz Surface Mount
