Same model may have multiple batches, images only for reference.

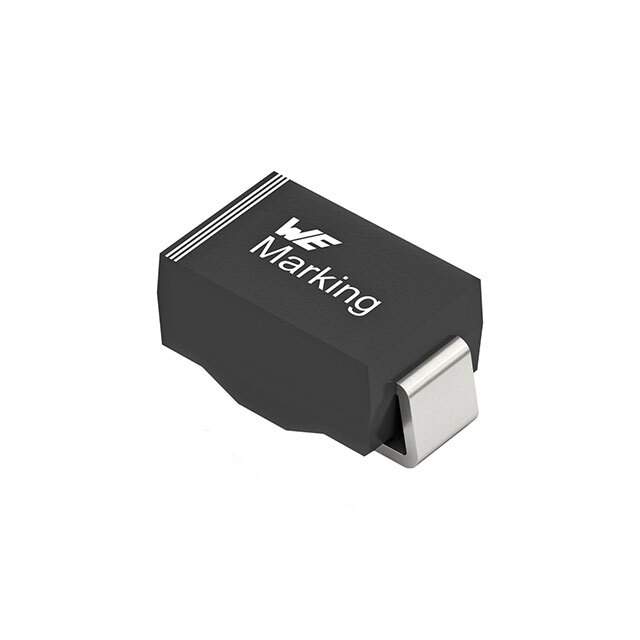

824501481 Real Image
Same model may have multiple batches, images only for reference.

824501481

Part No 824501481
Manufacturer Wurth Electronics Inc
Catalog TVS - Diodes
Description TVS DIODE 48VWM 77.4VC DO214AC / 77.4V Clamp 5.2A Ipp Tvs Diode Surface Mount DO-214AC
Datasheet
824501481 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 48V (Max)
Voltage - Breakdown (Min) 56.1V
Voltage - Clamping (Max) @ Ipp 77.4V
Current - Peak Pulse (10/1000µs) 5.2A
Power - Peak Pulse 400W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 150°C
Mounting Surface Mount
Case / Package DO-214AC, SMA
Supplier Device Package DO-214AC
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 732-824501481TR
Standard Package 1,000
Win Source Part Number 1334803-824501481
Ultra Librarian 3D Model Ultra Librarian 824501481 CAD Model

Description

The Zener diode from Würth Elektronik, with a part number of 1334803-824501481, is a circuit protection component that falls under the TVS-Diodes category.

  • Package: Surface-mount DO-214AC
  • Standard Package: 1,000 units per reel
  • Channel Direction: Bidirectional
  • Number of Channels: Single
  • Reverse Standoff Voltage: 48V (max)
  • Breakdown Voltage: 56.1V (min)
  • Voltage Clamping: 77.4V @ peak pulse power of 400W
  • Maximum Peak Pulse Current: 5.2A @ 10/1000µs
  • Application: General-purpose
  • Temperature Range: -65°C to 150°C
