Same model may have multiple batches, images only for reference.

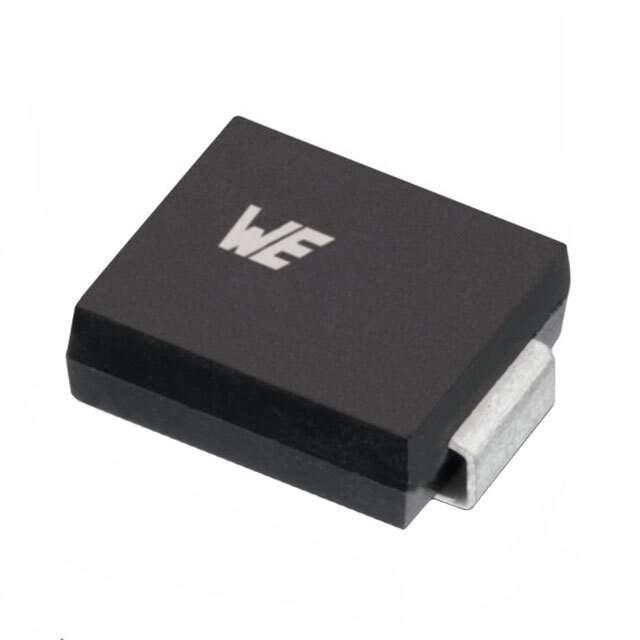

824520121 Real Image
Same model may have multiple batches, images only for reference.

824520121

Part No 824520121
Manufacturer Wurth Electronics Inc
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19.9VC DO214AA
Datasheet
824520121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000465-824520121
Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Circuit Protection Transient Voltage Suppressors (TVS) TVS Diodes
Series WE-TVSP
Package Tape & Reel (TR)
Type Zener
Operating Temperature -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA
Ultra Librarian 3D Model Ultra Librarian 824520121 CAD Model

Description

The WE-TVSP series Zener diode from Würth Elektronik is a transient voltage suppressor (TVS) diode designed for use in circuit protection applications. Würth Elektronik WE-TVSP series has an operating temperature range of -65°C to 150°C and is available in a surface mount package.

  • Temperature - Operating: -65°C ~ 150°C
  • Mounting Type: Surface Mount
  • Package: Tape & Reel (TR)
  • Series: WE-TVSP
  • Family: TVS Diodes
  • Type: Zener Diode
  • Alternative Parts (Cross-Reference): Yes
