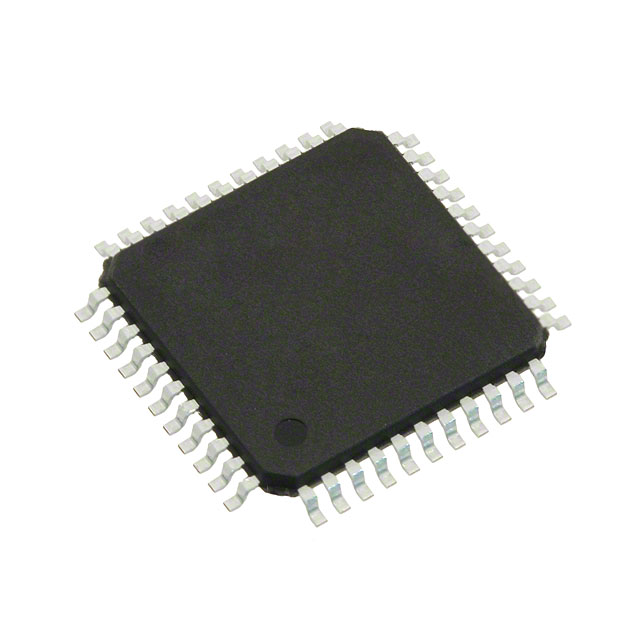

The XC18V04-VQ44C is a Configuration PROM (programmable read-only memory) manufactured by Xilinx Inc., specifically designed to store configuration data for Xilinx Field-Programmable Gate Arrays (FPGAs). It provides a non-volatile memory solution that allows the FPGA to be configured quickly and reliably upon power-up. The XC18V04 device offers a memory capacity of 4 Megabits. The 'VQ44' indicates the package type, which is a 44-pin Very Thin Quad Flatpack (VQFP), and 'C' denotes the temperature grade.

Applications

• Configuration data storage for Xilinx FPGAs in various systems.
• FPGA booting and initialization.
• Storage of firmware and configuration settings for immediate access.
• Use in embedded systems, industrial control, and communication equipment.
• Applications requiring quick and reliable FPGA configuration.

Features

• 4 Megabit (512K x 8) storage capacity.
• In-System Programmable (ISP) via JTAG (IEEE 1149.1) interface.
• Low power consumption.
• Fast configuration download times.
• 44-pin VQFP package for space-constrained applications.
• 3.3V operating voltage.
• Endurance of 20,000 program/erase cycles.
• Data retention of 20 years.

Benefits

• Reliable FPGA configuration: Ensures the FPGA is correctly configured every time the system powers on.
• Cost-effective solution: Offers a low-cost alternative for storing FPGA configuration data.
• Compact form factor: The VQFP package is suitable for applications with limited board space.
• Simplified programming: In-system programming capabilities streamline the development process.
• Long-term reliability: High endurance and data retention ensure stable performance over time.

Additional Details

The XC18V04-VQ44C is programmed using the industry-standard JTAG (IEEE 1149.1) interface, allowing for in-circuit programming without the need to remove the device from the board. This simplifies the design and debugging process. The device is ideal for applications where quick configuration and low power consumption are critical. The non-volatile memory ensures that the FPGA configuration is retained even when the power is removed. Data is transferred serially during the configuration process. The device is also RoHS compliant.
