Same model may have multiple batches, images only for reference.

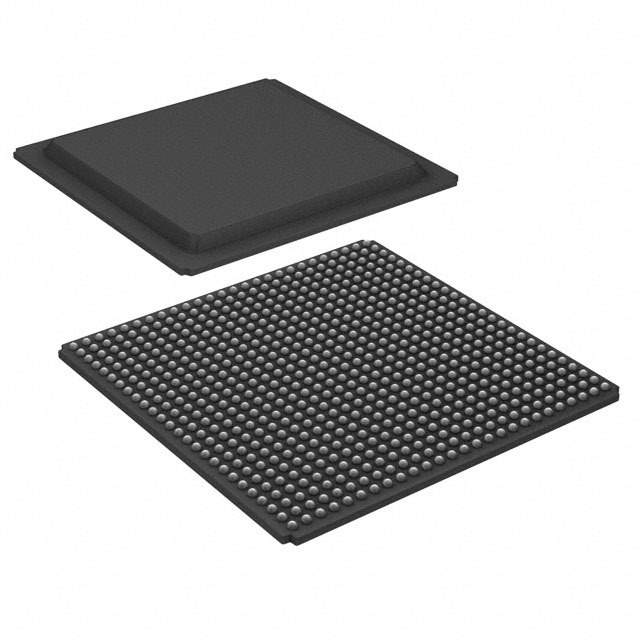

XC3S1500-4FG676I Real Image
Same model may have multiple batches, images only for reference.

XC3S1500-4FG676I

Part No XC3S1500-4FG676I
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 487 I/O 676FBGA
Datasheet
XC3S1500-4FG676I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Series Spartan-3
Number of LABs/CLBs 3328
Number of Logic Elements/Cells 29952
Total RAM Bits 589824
Number of I/O 487
Number of Gates 1500000
Operating Supply Voltage 1.14 V ~ 1.26 V
Mounting Sub-Base Mount
Operating Temperature Range -40°C ~ 100°C (TJ)
Package 676-BBGA, FCBGA
Manufacturer Package 676-FCBGA (27x27)
Win Source Part Number 717017-XC3S1500-4FG676I
Popularity Medium
Supply and Demand Status Limited
Family Name XC3S1500
Introduction Date April 09, 2002
ECCN 3A991.d
Country of Origin Philippines, Taiwan
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian XC3S1500-4FG676I CAD Model

Description

The Xilinx Inc. XC3S1500-4FG676I is a high-performance integrated circuit that is part of the Spartan-3 series. It has a total of 3328 LABs/CLBs, 29952 logic elements/cells, and 589824 RAM bits. The XC3S1500-4FG676I has a limited supply and demand status and is suitable for various applications that require high performance and low power consumption. It is ideal for use in consumer electronics, industrial automation, and other applications that require high-speed data processing.

  • LABs/CLBs: 3328
  • Logic Elements/Cells: 29952
  • RAM Bits: 589824
  • I/Os: 487
  • Operating Temperature Range: -40°C to 100°C
  • Supply and Demand Status: Limited
