Same model may have multiple batches, images only for reference.

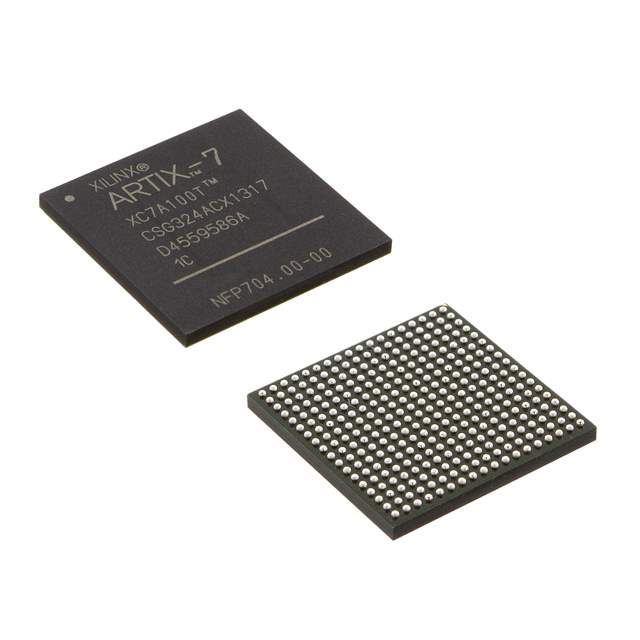

XC7A15T-2CSG324C Real Image
Same model may have multiple batches, images only for reference.

XC7A15T-2CSG324C

Part No XC7A15T-2CSG324C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description FPGA Artix-7 16640 Cells 28nm Technology 1V 324-Pin CS-BGA Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package BGA
Contact Plating Copper, Silver, Tin
Maximum Operating Temperature 85 °C
Max Supply Voltage 1.05 V
Min Operating Temperature 0 °C
Min Supply Voltage 950 mV
Mount Surface Mount
Number of I/Os 210
Number of Logic Blocks (LABs) 1300
Number of Logic Elements/Cells 16640
Number of Pins 324
Number of Registers 20800
Propagation Delay 110 ps
RAM Size 112.5 kB
RoHS Compliant
Speed Grade 2
Win Source Part Number 980643-XC7A15T-2CSG324C
Categories Embedded - FPGAs(Field Programmable GateArray)
Manufacturer Xilinx Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian XC7A15T-2CSG324C CAD Model

Description

The XC7A15T-2CSG324C is a field-programmable gate array (FPGA) manufactured by Xilinx Inc.

  • Mounting Type: Surface Mount Device (SMD)
  • Pins: 324
  • Logic Elements/Cells: 16640
  • RAM Size: 112.5 kB
  • Propagation Delay: 110 ps
  • Category: Embedded - FPGAs(Field Programmable GateArray)
  • Case: BGA
  • RoHS Compliant: Yes
  • Popularity: Low
  • Operating Temperature (Max): 85 °C
  • Operating Temperature (Min): 0 °C
