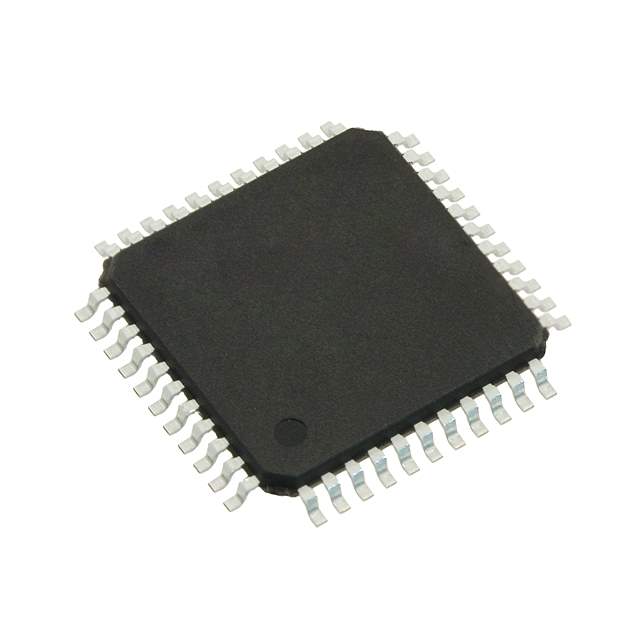

XC9536-10VQG44C Xilinx Inc. XC9536-10VQG44C Real Image XC9536-10VQG44C Real Image
XC9536-10VQG44C Xilinx Inc. XC9536-10VQG44C Real Image XC9536-10VQG44C Real Image
Same model may have multiple batches, images only for reference.

XC9536-10VQG44C

Part No XC9536-10VQG44C
Manufacturer Xilinx Inc.
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 36MC 10NS 44VQFP / CPLD XC9500 Family 800 Gates 36 Macro Cells 66.7MHz 0.5um Technology 5V 44-Pin VQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Xilinx Inc.
Packaging Tray
Status Obsolete(EOL)
Programmable Type In System Programmable (min 10K program/erase cycles)
Delay Time tpd(1) Max 10.0ns
Voltage Supply - Internal 4.75 V to 5.25 V
Number of Logic Elements/Blocks 2
Number of Macrocells 36
Number of Gates 800
Number of I/O 34
Temperature Range - Operating 0°C to 70°C (TA)
Mounting SMD (SMT)
Case / Package 44-VQFP (10x10)
Win Source Part Number 086065-XC9536-10VQG44C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name XC9536
Introduction Date May 01, 1996
ECCN EAR99
Country of Origin Japan, Philippines, Republic of Korea, Taiwan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian XC9536-10VQG44C CAD Model

Description

The XC9536-10VQG44C is an in-system programmable CPLD from Xilinx Inc.

  • Gates: 800
  • Macrocells: 36
  • I/Os: 34
  • Delay time tpd(1) max: 10.0ns
  • Voltage supply range: 4.75 V to 5.25 V
  • Package: 44-VQFP (10x10)
