Same model may have multiple batches, images only for reference.

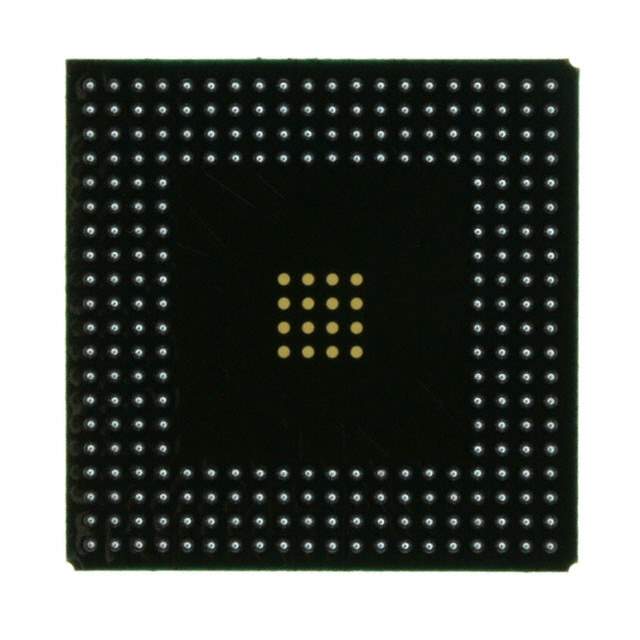

XCS40-3BG256C Real Image
Same model may have multiple batches, images only for reference.

XCS40-3BG256C

Part No XCS40-3BG256C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 205 I/O 256BGA / FPGA Spartan® Family 40K Gates 1862 Cells 125MHz 5V 256-Pin BGA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Xilinx Inc.
Series Spartan
Part Status Obsolete(EOL)
Number of LABs/CLBs 784
Number of Logic Elements/Cells 1862
Total RAM Bits 25088
Number of I/O 205
Number of Gates 40000
Operating Supply Voltage 4.75 V ~ 5.25 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 256-BBGA
Manufacturer Package 256-PBGA (27x27)
Win Source Part Number 800019-XCS40-3BG256C
Popularity Medium
Supply and Demand Status Limited
Family Name XCS40
Introduction Date January 05, 1999
ECCN EAR99
Country of Origin Taiwan, Republic of Korea
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian XCS40-3BG256C CAD Model

Description

The Xilinx XCS40-3BG256C is a Spartan series electronic component that operates within a temperature range of 0°C to 85°C (TJ).

  • Package: 256-BBGA
  • Mounting: SMD
  • Operating Supply Voltage: 4.75 V to 5.25 V
  • I/O: 205
  • LABs/CLBs: 784
  • Logic Elements/Cells: 1862
  • Total RAM Bits: 25088
  • Family Name: XCS40
  • Status: Obsolete/End of Life
  • Supply and Demand: Limited
  • Introduction Date: January 05, 1999
