Same model may have multiple batches, images only for reference.

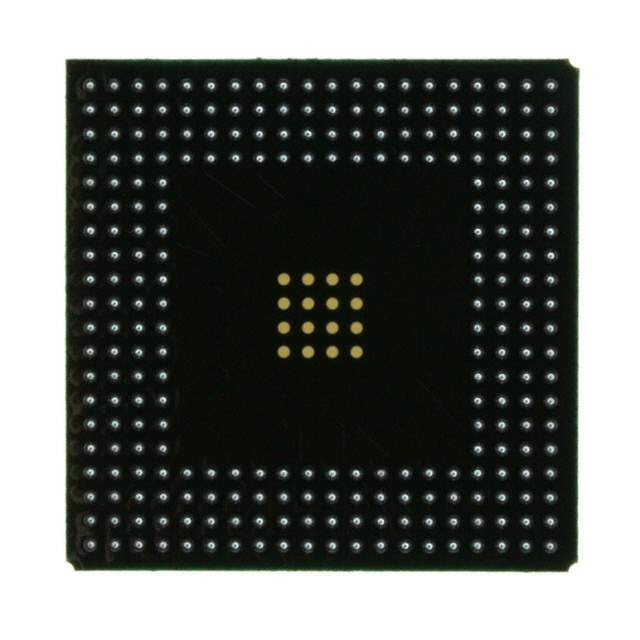

XCS404BG256C Real Image
Same model may have multiple batches, images only for reference.

XCS404BG256C

Part No XCS404BG256C
Manufacturer Xilinx Inc.
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description FPGA Spartan® Family 40K Gates 1862 Cells 166MHz 5V 256-Pin BGA
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package BGA
Lead Free Contains Lead
Maximum Operating Temperature 85 °C
Min Operating Temperature 0 °C
Mount Surface Mount
Number of Gates 40000
Number of I/Os 205
Number of Logic Blocks (LABs) 784
Number of Logic Elements/Cells 1862
Number of Pins 256
Number of Registers 2016
Operating Supply Voltage 5 V
Packaging Bulk
Radiation Hardening No
RAM Size 3.1 kB
RoHS Non-Compliant
Speed Grade 4
Win Source Part Number 1004145-XCS404BG256C
Categories Embedded - FPGAs(Field Programmable GateArray)
Manufacturer Xilinx Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian XCS404BG256C CAD Model

Description

The XCS404BG256C is an embedded FPGA electronic component manufactured by Xilinx Inc.

  • Pins: 256
  • RAM: 3.1 kB
  • Logic Elements/Cells: 1862
  • Registers: 2016
  • Case/Package: BGA
  • I/Os: 205
  • Popularity: Low
  • Supply and Demand Status: Shortage
  • RoHS: Non-RoHS compliant
  • Lead: Contains lead
  • Radiation Hardening: No
  • Speed Grade: 4
  • Minimum Operating Temperature: 0°C
  • Maximum Operating Temperature: 85°C
