Same model may have multiple batches, images only for reference.

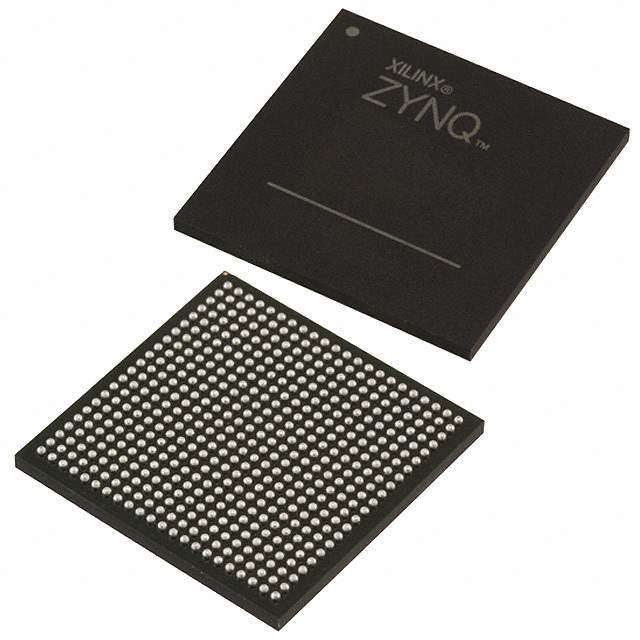

XC7Z012S-1CLG485C Real Image
Same model may have multiple batches, images only for reference.

XC7Z012S-1CLG485C

Part No XC7Z012S-1CLG485C
Manufacturer Xilinx Inc.
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-A9 667MHZ 485CSBGA / Single ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Zynq®-7000 Artix™-7 FPGA, 55K Logic Cells 667MHz 485-CSPBGA (19x19)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>System On Chip (SoC)
Manufacturer AMD Xilinx
Packaging Tray
Architecture MCU, FPGA
Core Processor Single ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 667MHz
Primary Attributes Artix™-7 FPGA, 55K Logic Cells
Temperature Range - Operating 0°C ~ 85°C (TJ)
Case / Package 485-LFBGA, CSPBGA
Supplier Device Package 485-CSPBGA (19x19)
Number of I/O 150
Base Product Number XC7Z012
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Part Number 122-2014
Standard Package 84
Win Source Part Number 1323411-XC7Z012S-1CLG485C
Ultra Librarian 3D Model Ultra Librarian XC7Z012S-1CLG485C CAD Model

Description

The AMD Xilinx XC7Z012S-1CLG485C is a System on Chip (SoC) integrated circuit from AMD Xilinx.

  • Processor: Single ARM Cortex-A9 MPCore with CoreSight @ 667MHz
  • RAM: 256KB
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
  • Peripherals: DMA
  • Number of I/Os: 150
  • Temperature Range: 0℃ to 85℃
  • Package: 485-CSPBGA
  • RoHS3 Compliant: Yes
  • ECCN: 3A991D
