Same model may have multiple batches, images only for reference.

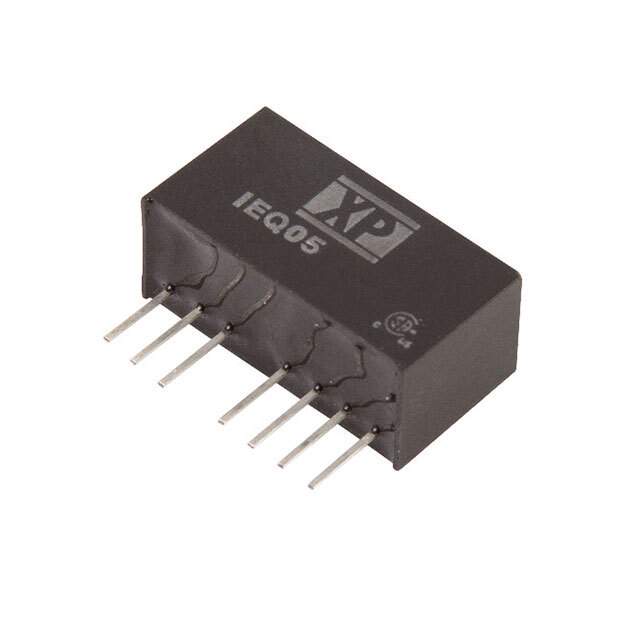

IEQ0548D12 Real Image
Same model may have multiple batches, images only for reference.

IEQ0548D12

Part No IEQ0548D12
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 5W / Isolated Module DC DC Converter 2 Output 12V -12V 209mA, 209mA 18V - 75V Input
Datasheet
IEQ0548D12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series IEQ05 (5W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 209mA, 209mA
Power (Watts) 5 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, SCP
Temperature Range - Operating -40°C ~ 90°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 8-SIP Module, 7 Leads
Size / Dimension 0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm)
Supplier Device Package 8-SIP
Control Features Enable, Active Low
Standard Number 62368-1
Base Product Number IEQ0548
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337465-IEQ0548D12
Ultra Librarian 3D Model Ultra Librarian IEQ0548D12 CAD Model

Description

The IEQ0548D12 is a 5W isolated module DC-DC converter that has a remote on/off feature and SCP.

  • Power (Watts): 5W
  • Features: Remote On/Off, SCP
  • Packaging: Tube
  • Size / Dimension: 0.86" L x 0.37" W x 0.44" H (22.0mm x 9.5mm x 11.3mm)
  • Applications: ITE (Commercial)
  • Voltage - Input: 18V ~ 75V
  • Number of Outputs: 2
  • Voltage - Output 1: 12V
  • Voltage - Output 2: -12V
  • Efficiency: 82%
  • Mounting Type: Through Hole
  • Package / Case: 8-SIP Module, 7 Leads
  • Operating Temperature: -40°C ~ 90°C
