Same model may have multiple batches, images only for reference.

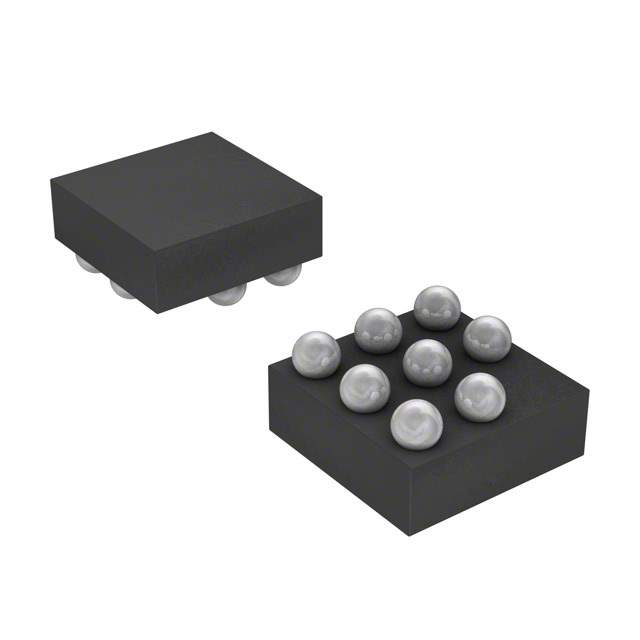

BGF106CE6328XTSA1 Real Image
Same model may have multiple batches, images only for reference.

BGF106CE6328XTSA1

Part No BGF106CE6328XTSA1
Manufacturer Infineon Technologies
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 290MHZ ESD SMD / RC EMI Filter 2nd Order Low Pass 3 Channel R = 47Ohms, 100Ohms, C = 16.5pF (Total) 8-UFBGA, WLCSP
Datasheet
BGF106CE6328XTSA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr Infineon Technologies
Package Tape & Reel (TR)
Product Status Obsolete
Type Low Pass
Filter Order 2nd
Technology RC
Number of Channels 3
Center / Cutoff Frequency 290MHz (Cutoff)
Attenuation Value 16.9dB @ 800MHz ~ 4GHz
Resistance - Channel (Ohms) 47, 100
Values R = 47Ohms, 100Ohms, C = 16.5pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 5.5V
Mounting SMD (SMT)
Package / Case 8-UFBGA, WLCSP
Dimension 0.047" L x 0.047" W (1.20mm x 1.20mm)
Height 0.026" (0.65mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names BGF 106C E6328,BGF 106C E6328-ND,BGF106CE6328XTSA1TR,2156-BGF106CE6328XTSA1-ITTR,IFEINFBGF106CE6328XTSA1,SP000646832
Standard Package 4,500
Win Source Part Number 1049202-BGF106CE6328XTSA1
Ultra Librarian 3D Model Ultra Librarian BGF106CE6328XTSA1 CAD Model

Description

The BGF106CE6328XTSA1 is a low pass EMI/RFI filter designed for data lines in mobile devices.

  • Voltage Rating: 5.5V
  • Filter Order: 2nd
  • Attenuation: 16.9dB @ 800MHz to 4GHz
  • Package: 8-UFBGA, WLCSP
  • Operating Temperature: -40°C to 85°C
  • Application: Mobile devices
