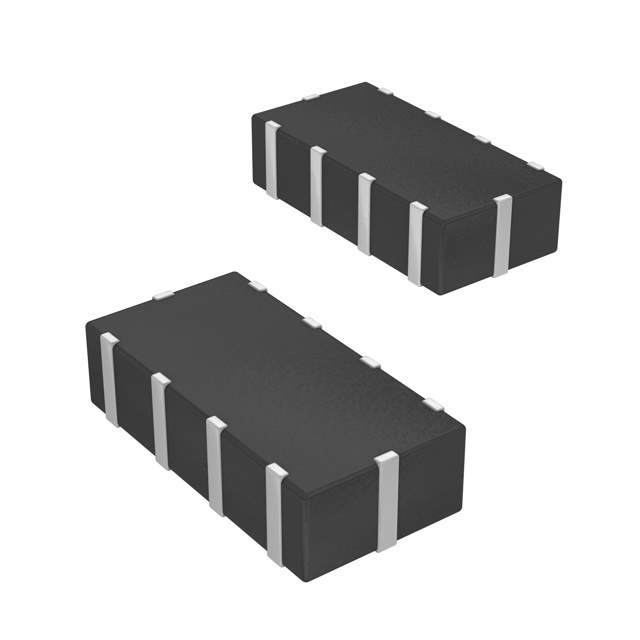

MEA3216L50R0 Real Image
Same model may have multiple batches, images only for reference.

MEA3216L50R0

Part No MEA3216L50R0
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 50MHZ SMD
Datasheet
MEA3216L50R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 50MHz (Cutoff)
Attenuation Value 20dB @ 500MHz to 1GHz
Current 100mA
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.039" (1.00mm)
Win Source Part Number 1075765-MEA3216L50R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MEA3216L50R0 CAD Model

Description

The TDK Corporation MEA3216L50R0 is a low pass filter manufactured by TDK Corporation.

  • Voltage Rating: 10V
  • Application: General Purpose
  • Mounting: SMD (SMT)
  • Height: 0.039" (1.00mm)
  • Current: 100mA
  • Channels: 4
  • Attenuation: 20dB @ 500MHz to 1GHz
  • Filter Order: 2nd
  • Center/Cutoff Frequency: 50MHz (Cutoff)
  • Resistance - Channel (Ohms): -
  • Category: Filters
  • Status: Obsolete (EOL)
  • Temperature Range - Operating: -40°C to 85°C
  • Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Supply and Demand Status: Balanced
